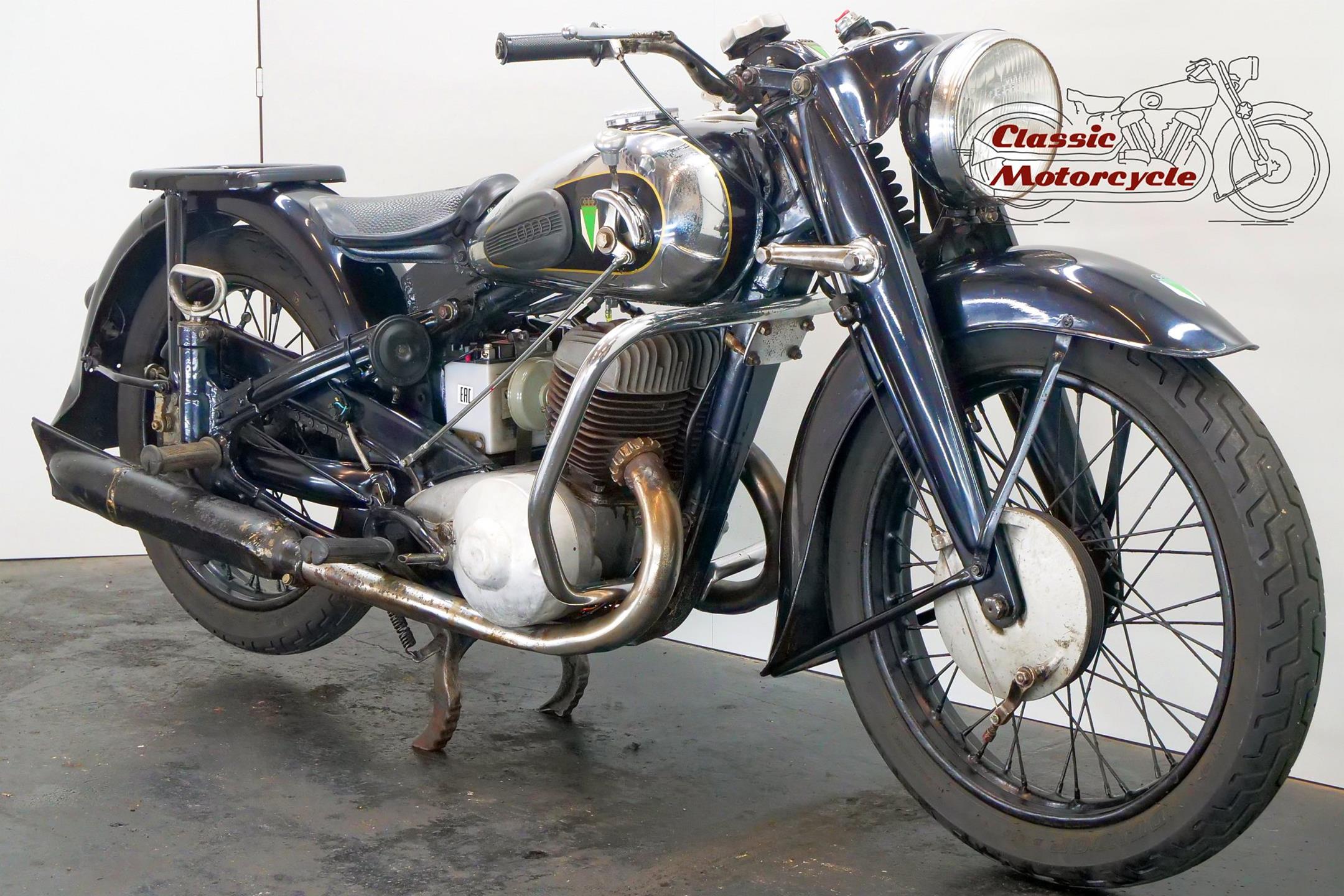

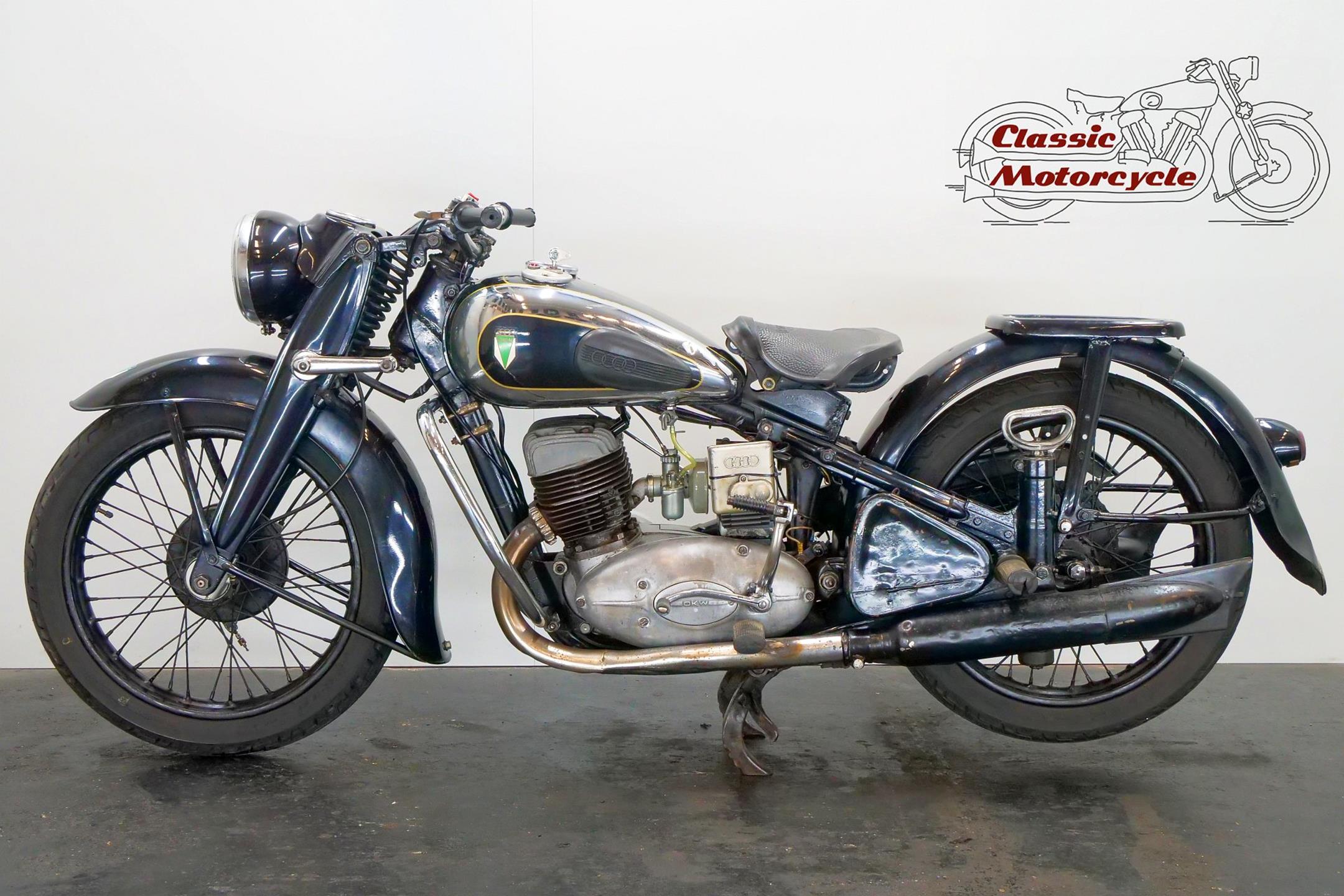

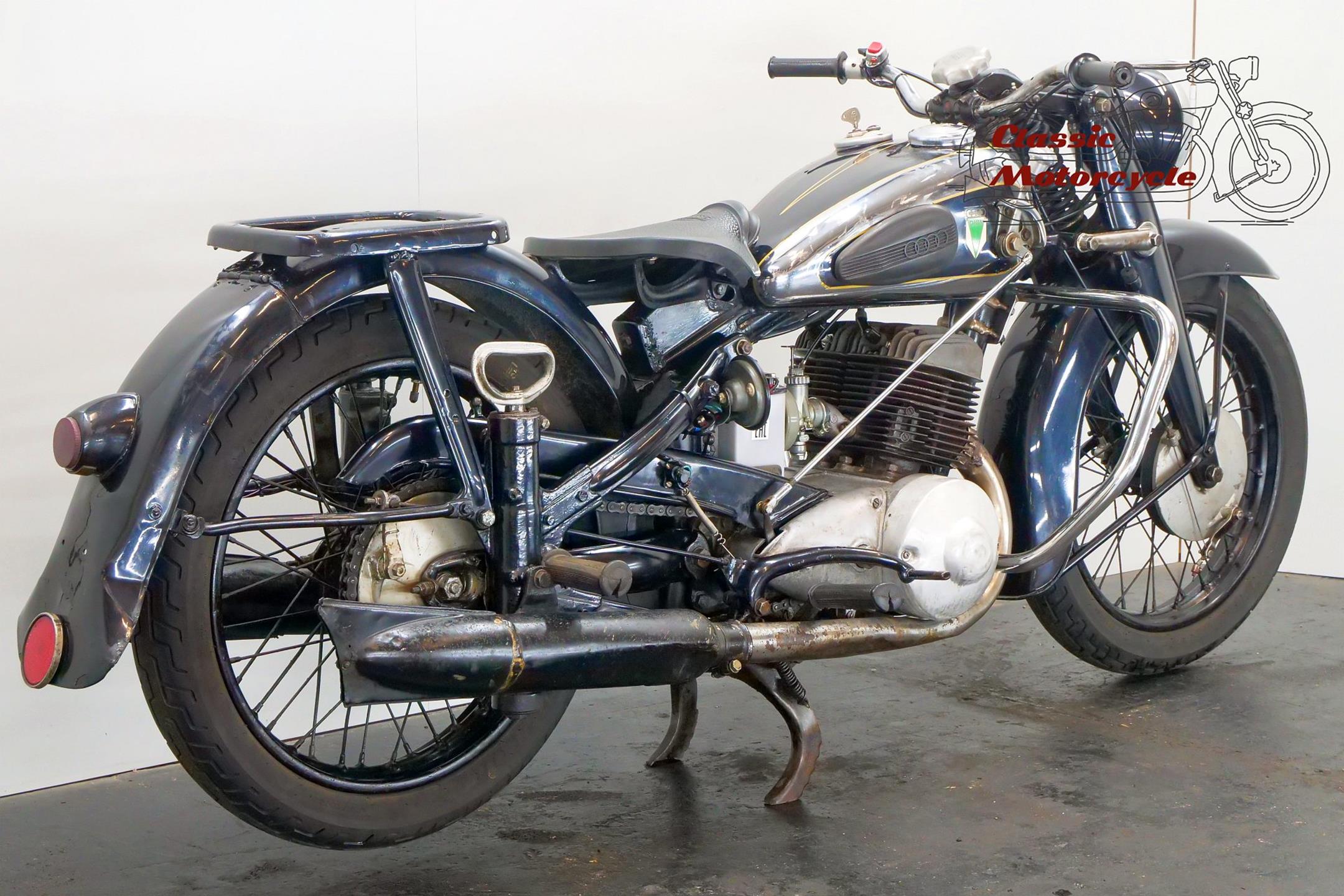

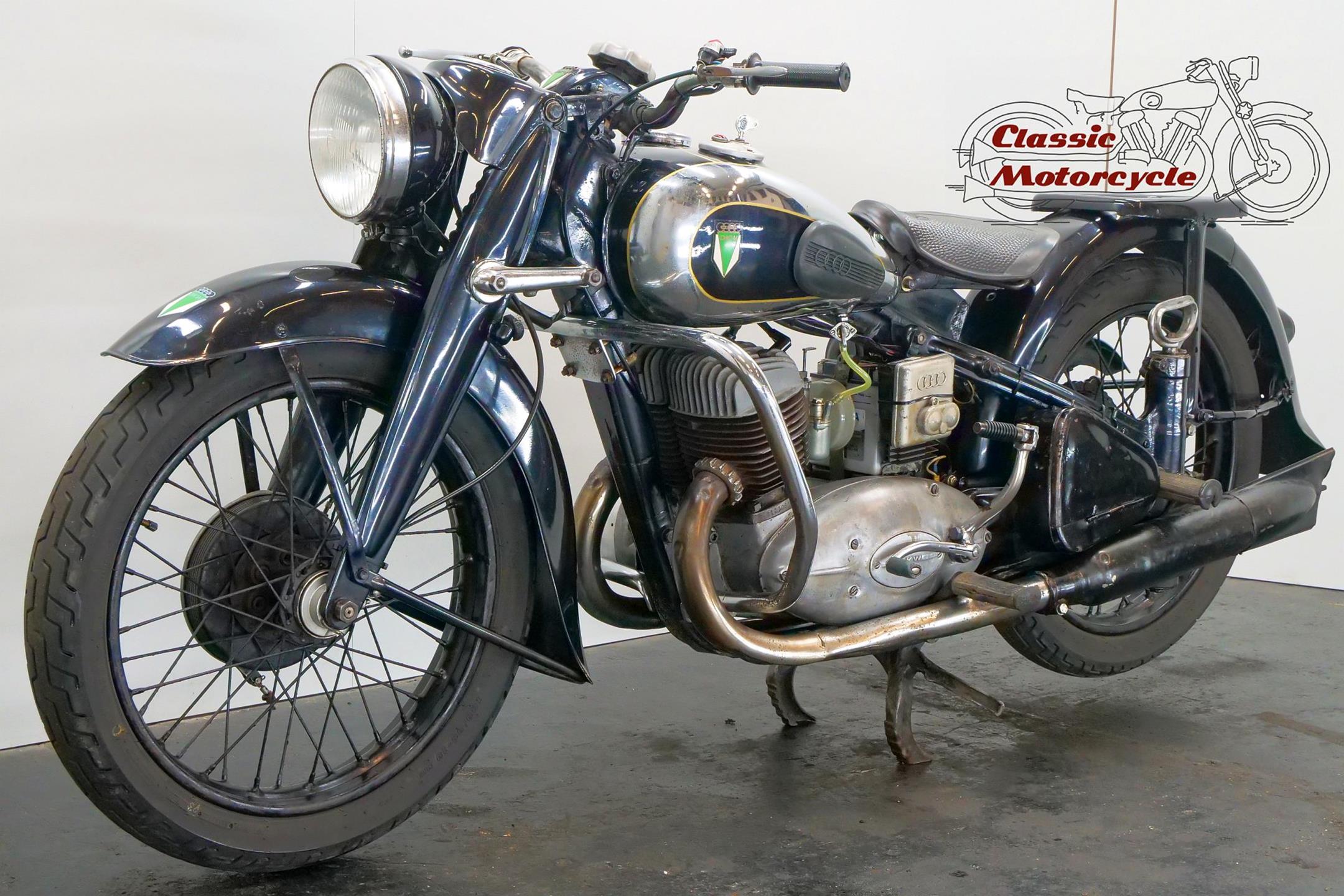

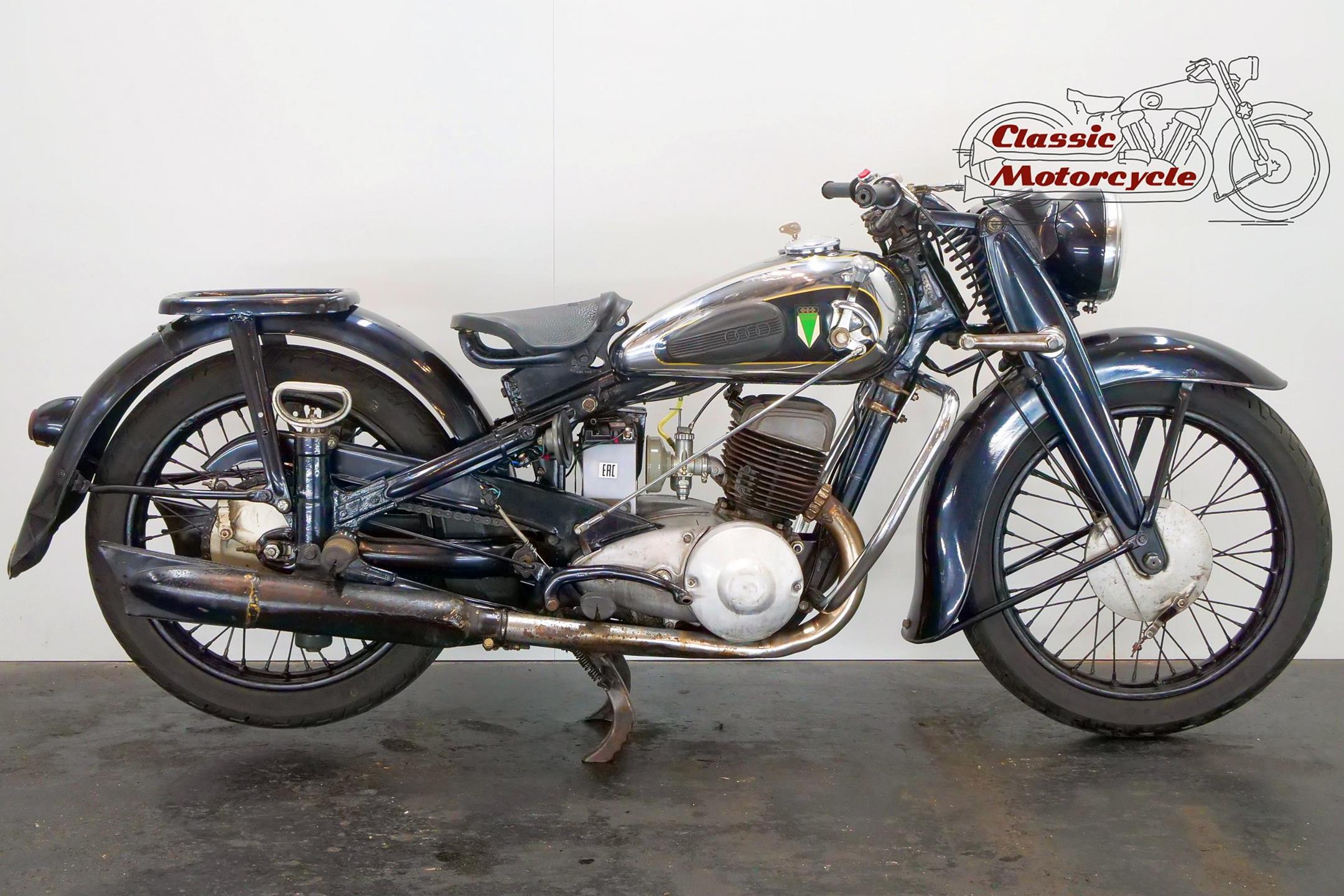

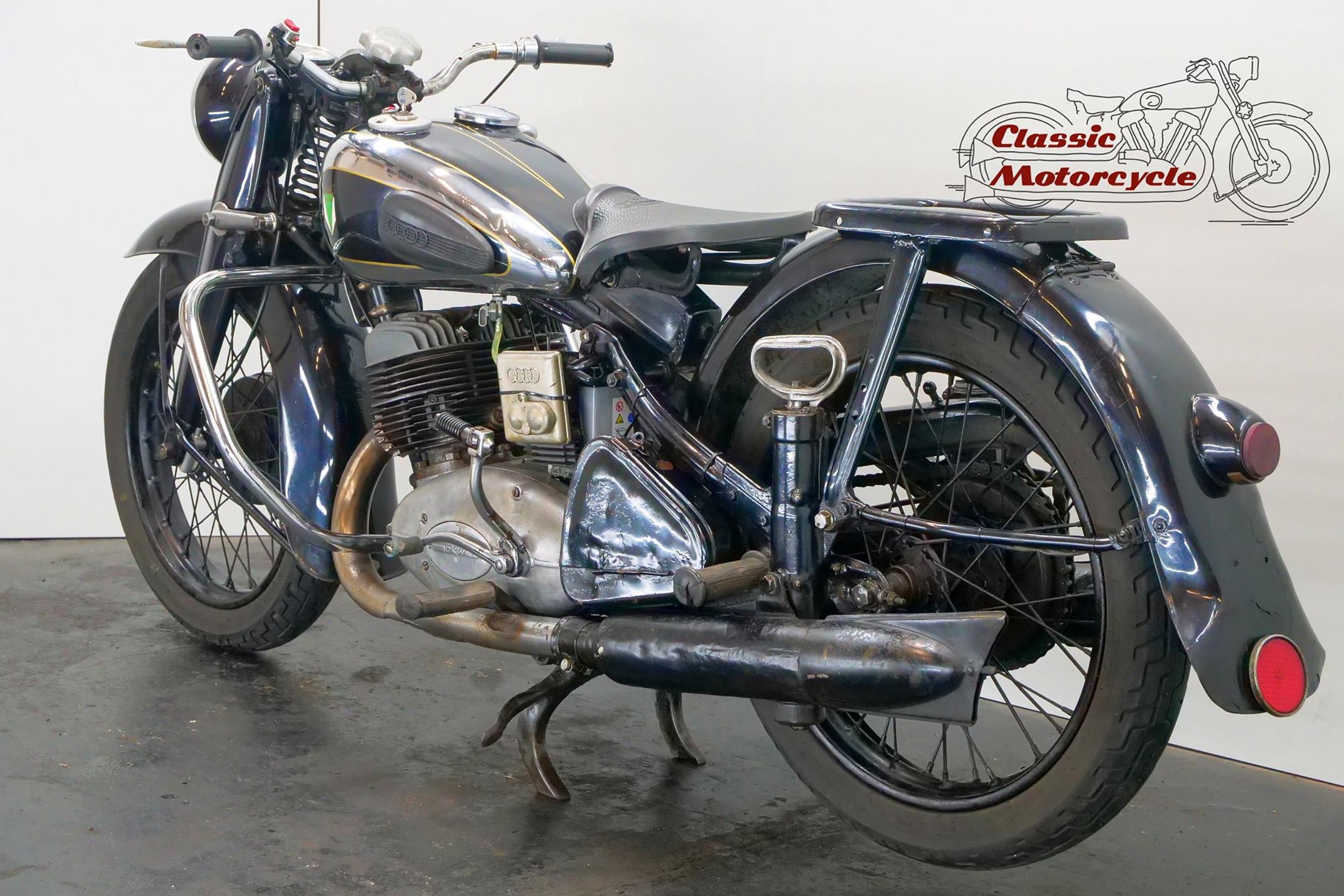

![DKW NZ500 1941 500cc 2 cyl ts]( "DKW NZ500 1941 500cc 2 cyl ts")
Manufacturer: DKW
Model: NZ500
Year: 1941
Displacement: 489 cc
Cylinder: 2
Engine type: 2-stroke
Bore / Stroke:
64
x
76 mm
Power: 18.5hp
@ 4200 rpm
Top Speed: 115 km/h
Units: c.4600
Frame number: 553460
Engine number: 1121082

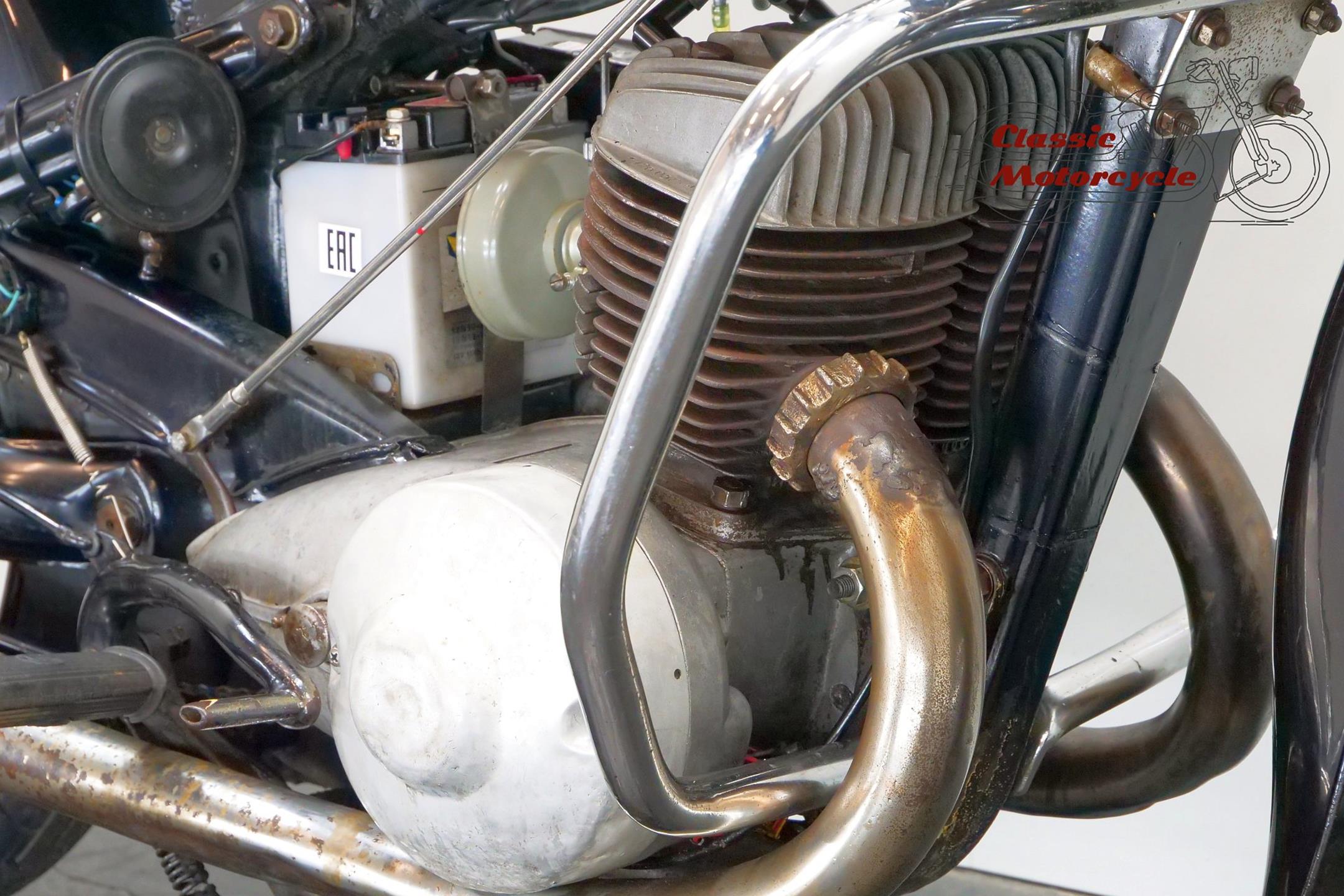

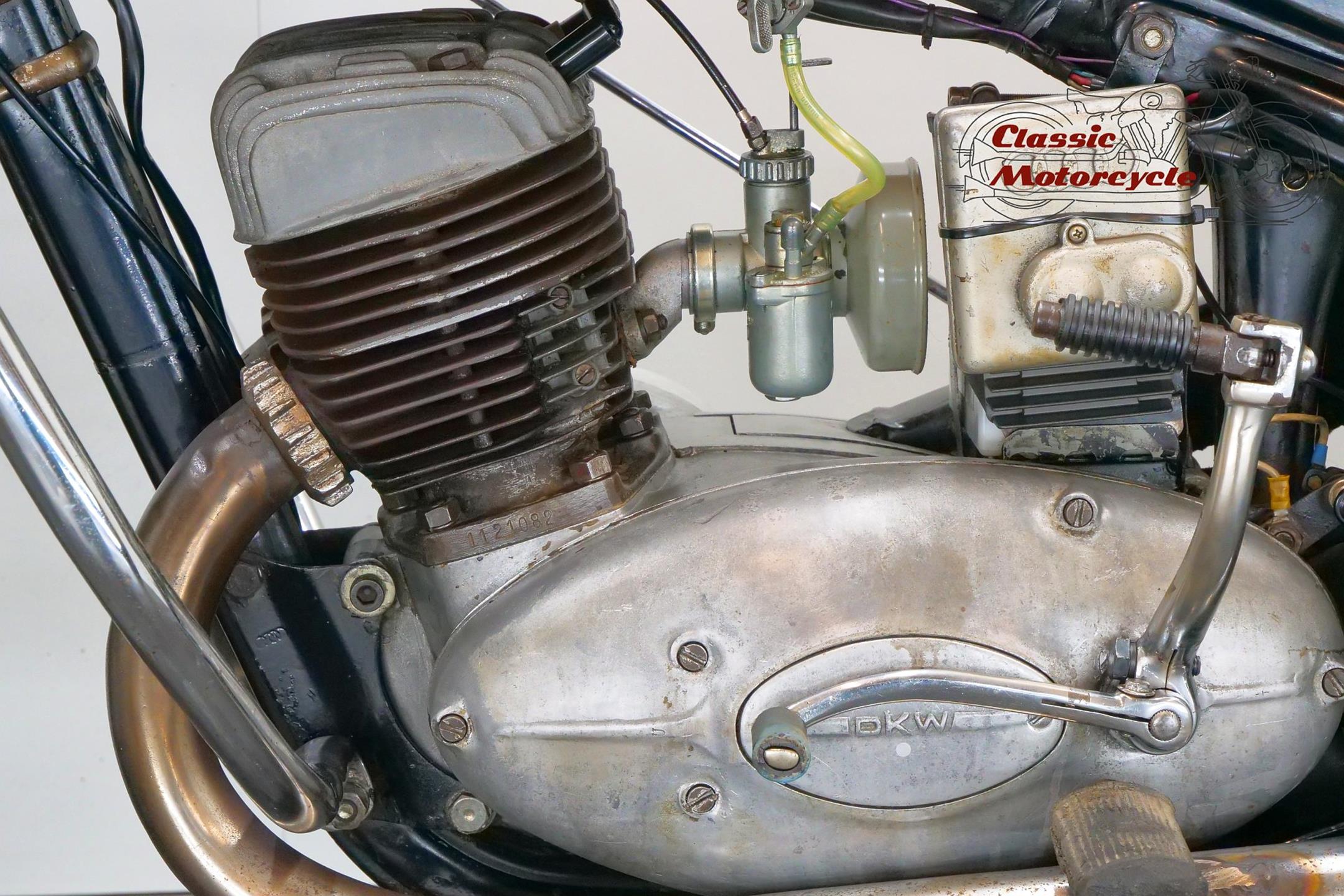

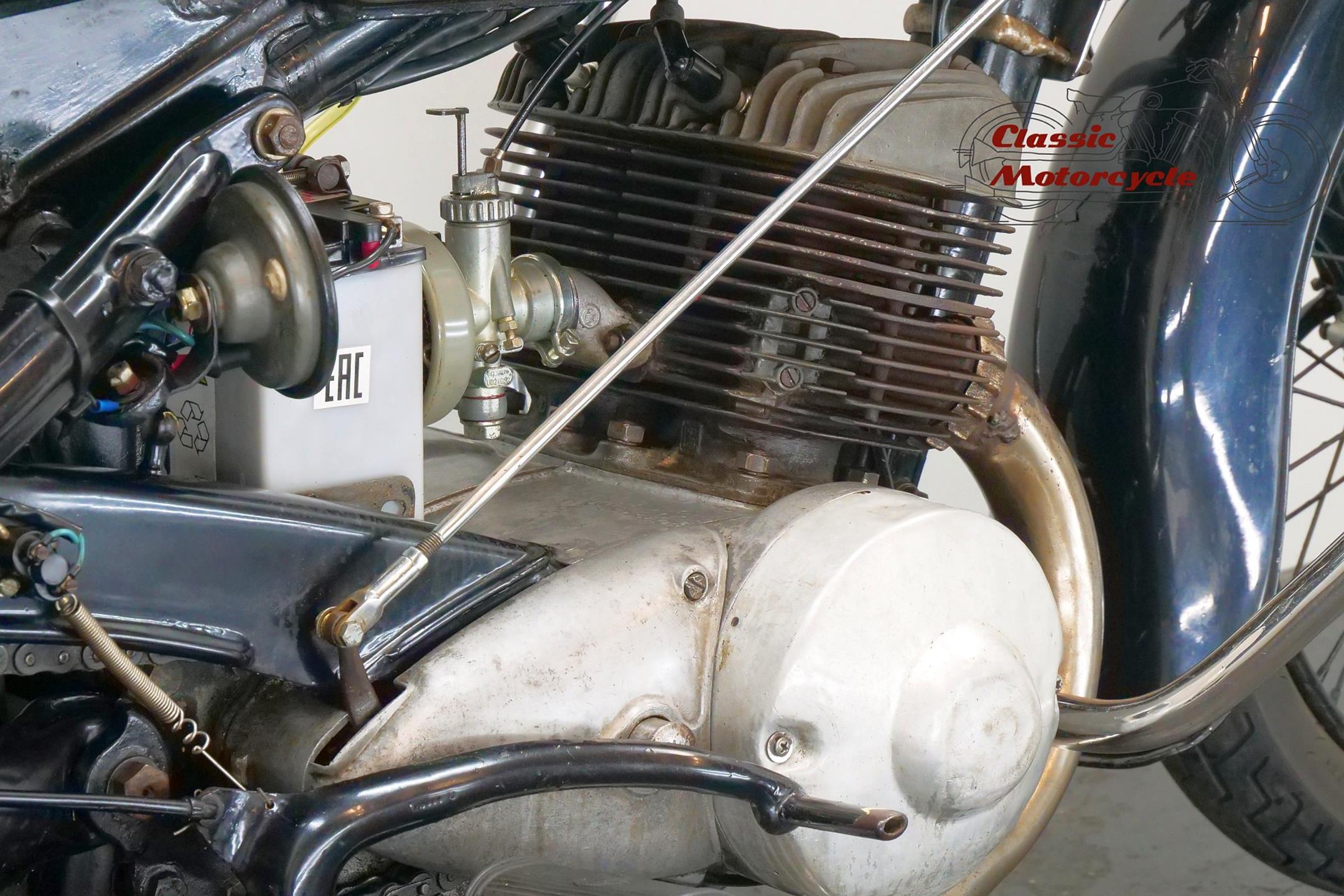

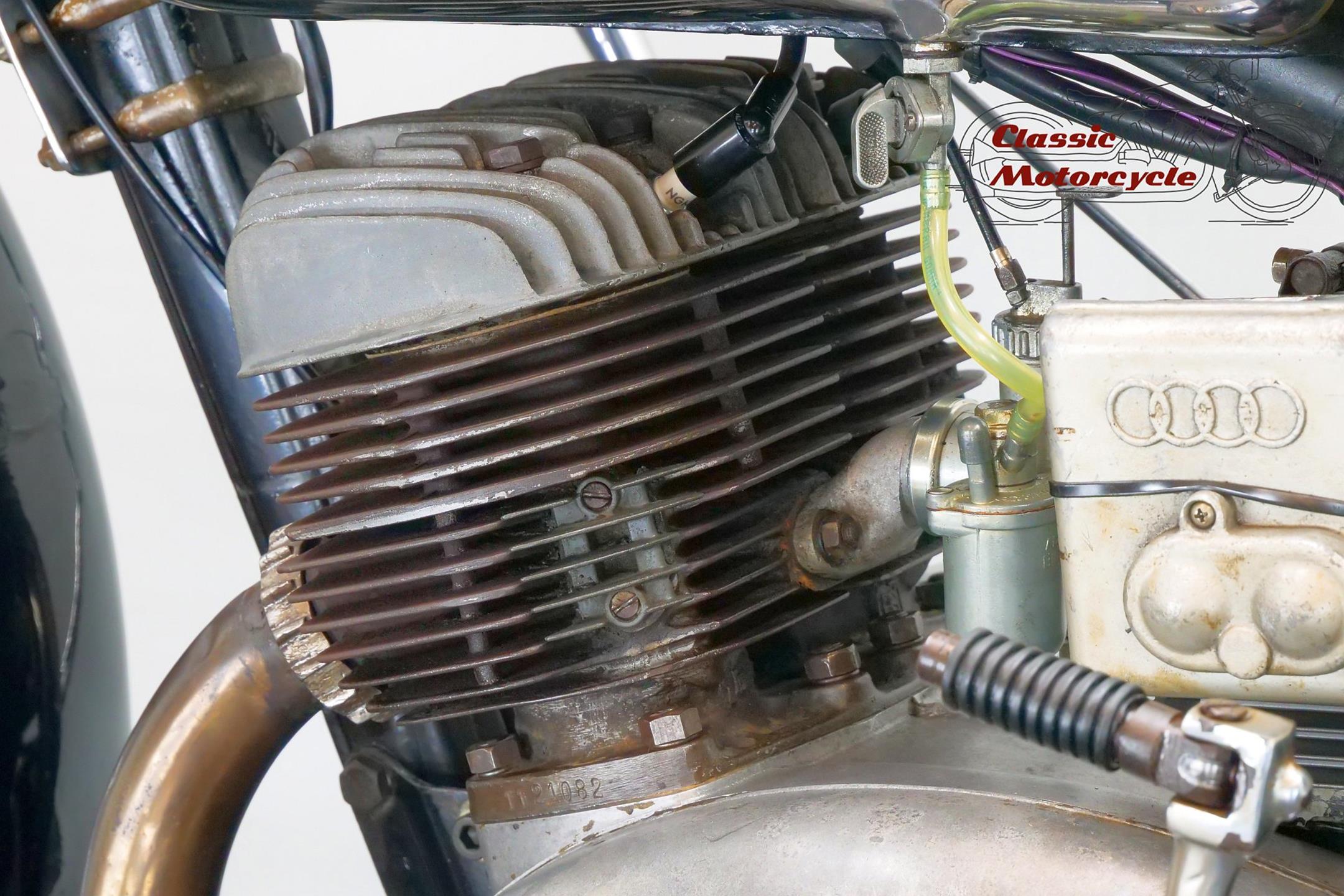

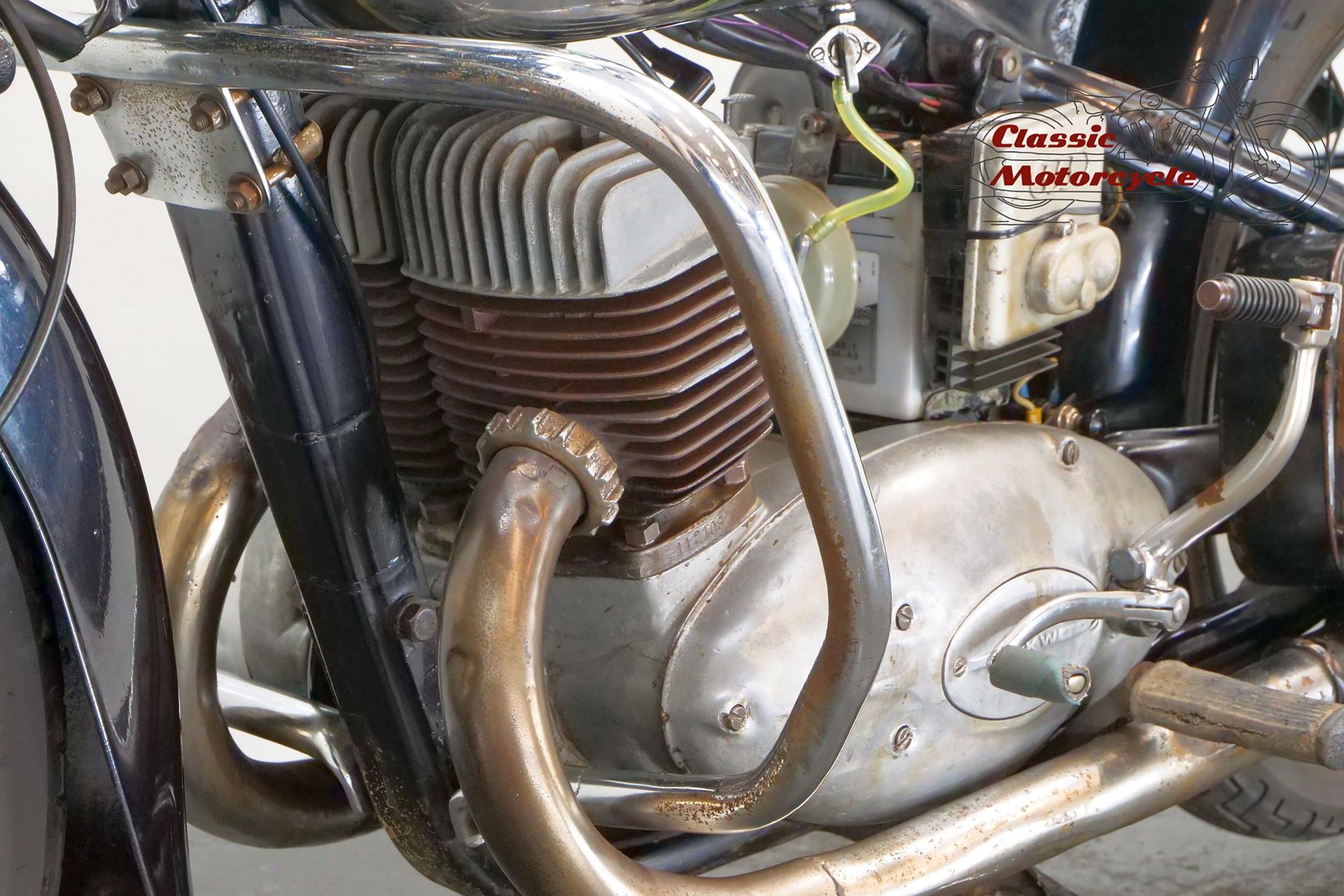

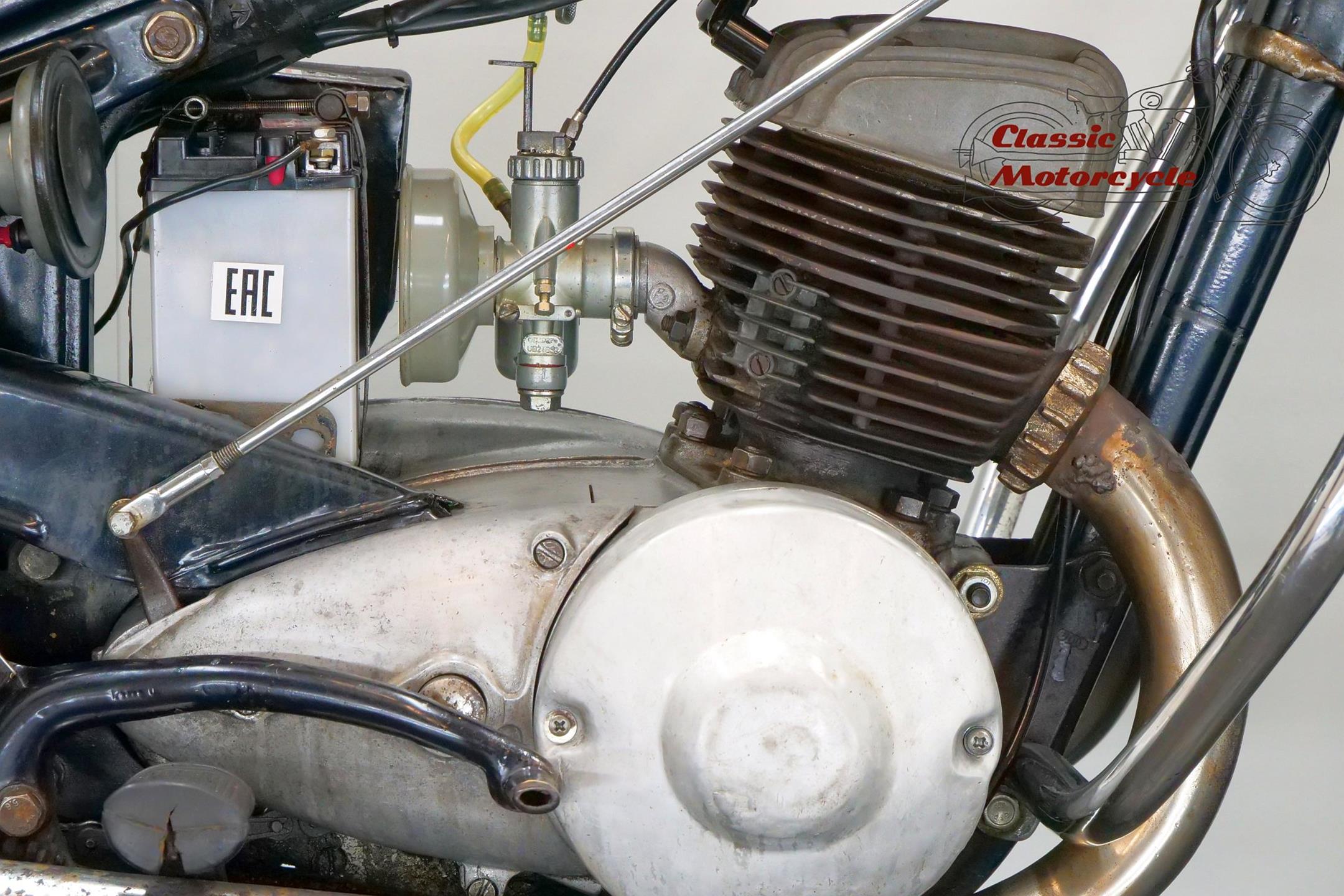

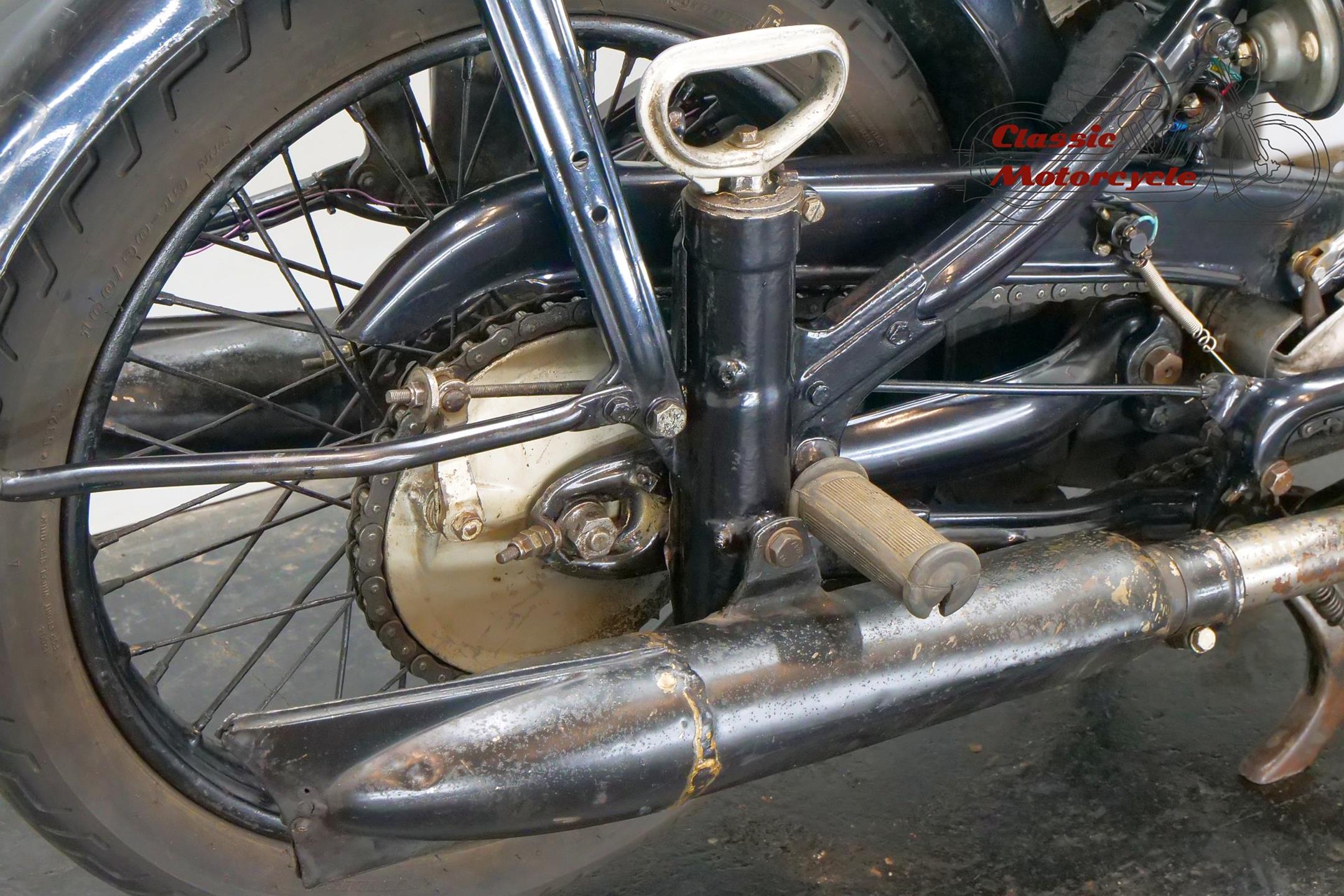

DKW was founded in Zschopau in 1919 by Danish engineer Jorgen Rasmussen and built its first motorcycle power unit, a single-cylinder, clip-on engine for bicycle attachment, in 1921. Designed by Hugo Ruppe, this 122cc motor was a two-stroke, and DKW would remain faithful to this engine type from then on, becoming world leaders in two-stroke design in the 1930s thanks to the prescient adoption of the Schnuerle loop-scavenge system. The latter used flat-topped pistons rather than the then-conventional deflector-crown type, relying on carefully angled transfer ports to direct the incoming charge around the cylinder. DKW was Continental Europe’s largest motorcycle maker at this time, manufacturing a huge and diverse range of road bikes during the 1930s, the NZ500 being one of the fastest and most powerful. An air-cooled twin of advanced design featuring swinging-arm rear suspension, the NZ500 employed engine dimensions of 64x76mm bore/stroke (for a capacity of 489cc) and produced 18.5bhp. Representing the pinnacle of pre-war DKW motorcycle design, approximately 4,200 of these rare and desirable models were made between 1939 and 1942, almost all of which were supplied to Hitler’s SS.
This NZ500 is a good runner.
