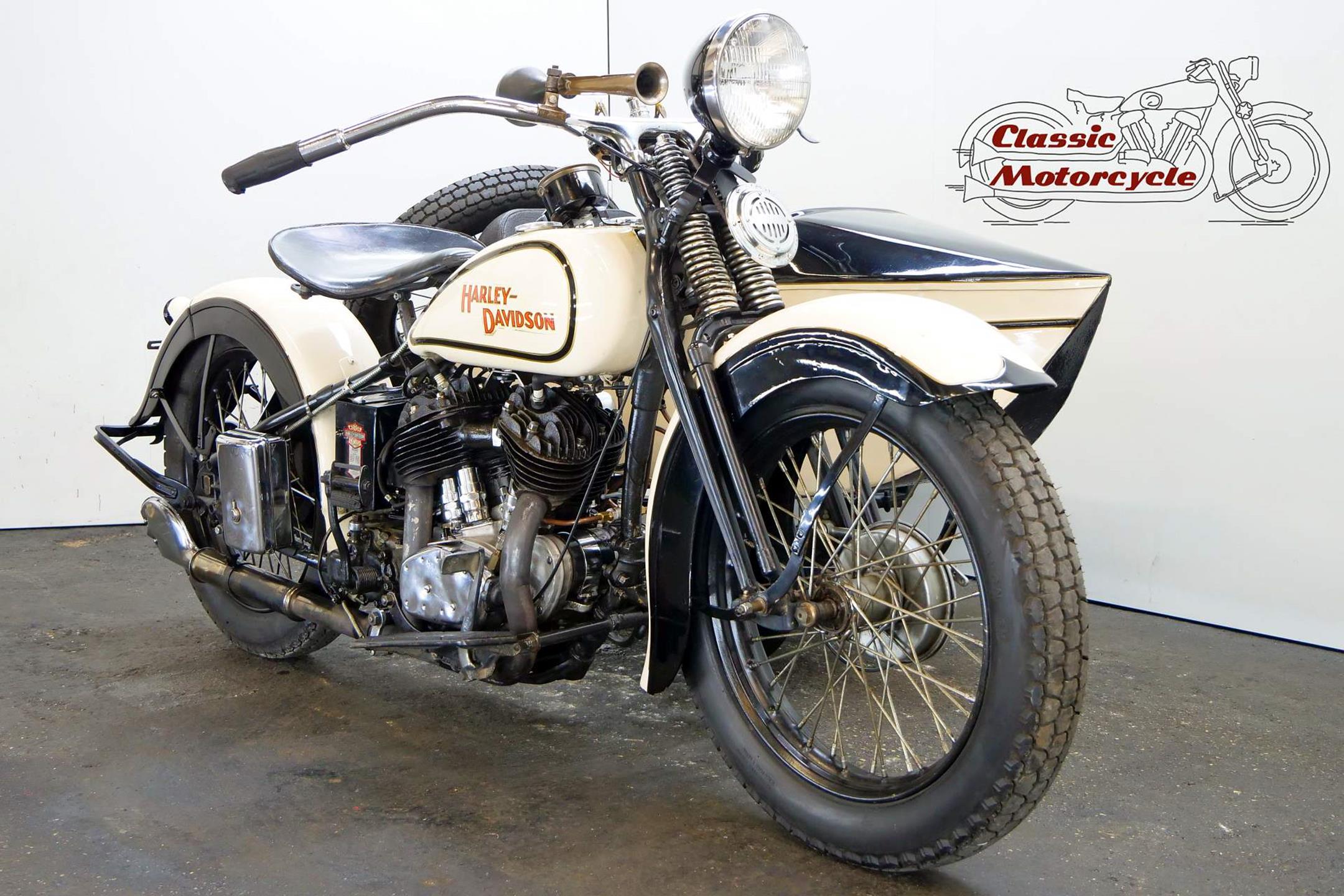

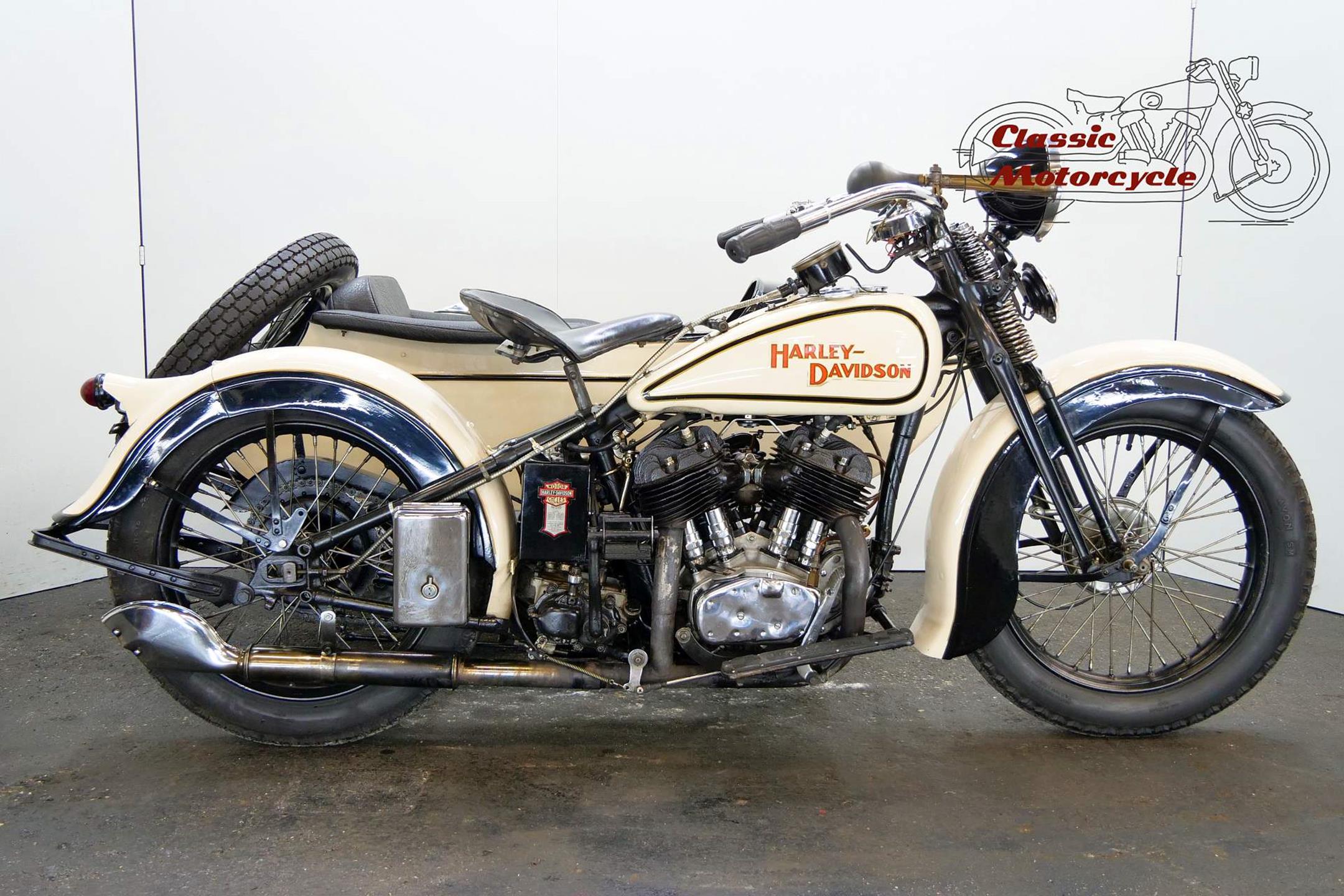

![Harley Davidson VLD 1934 1212cc 2 cyl sv Combination]( "Harley Davidson VLD 1934 1212cc 2 cyl sv Combination")
Manufacturer: Harley Davidson
Model: VLD Combination
Year: 1934
Displacement: 1212 cc
Cylinder: 2 / V-twin
Engine type: 4-stroke / sv
Bore / Stroke:
86.36
x
101.60 mm
Power: 36hp
@ 4.500 rpm
Weight: 239 kg
Top Speed: 144 km/h
Frame number: 34VLD2641
Engine number: 34VLD2641

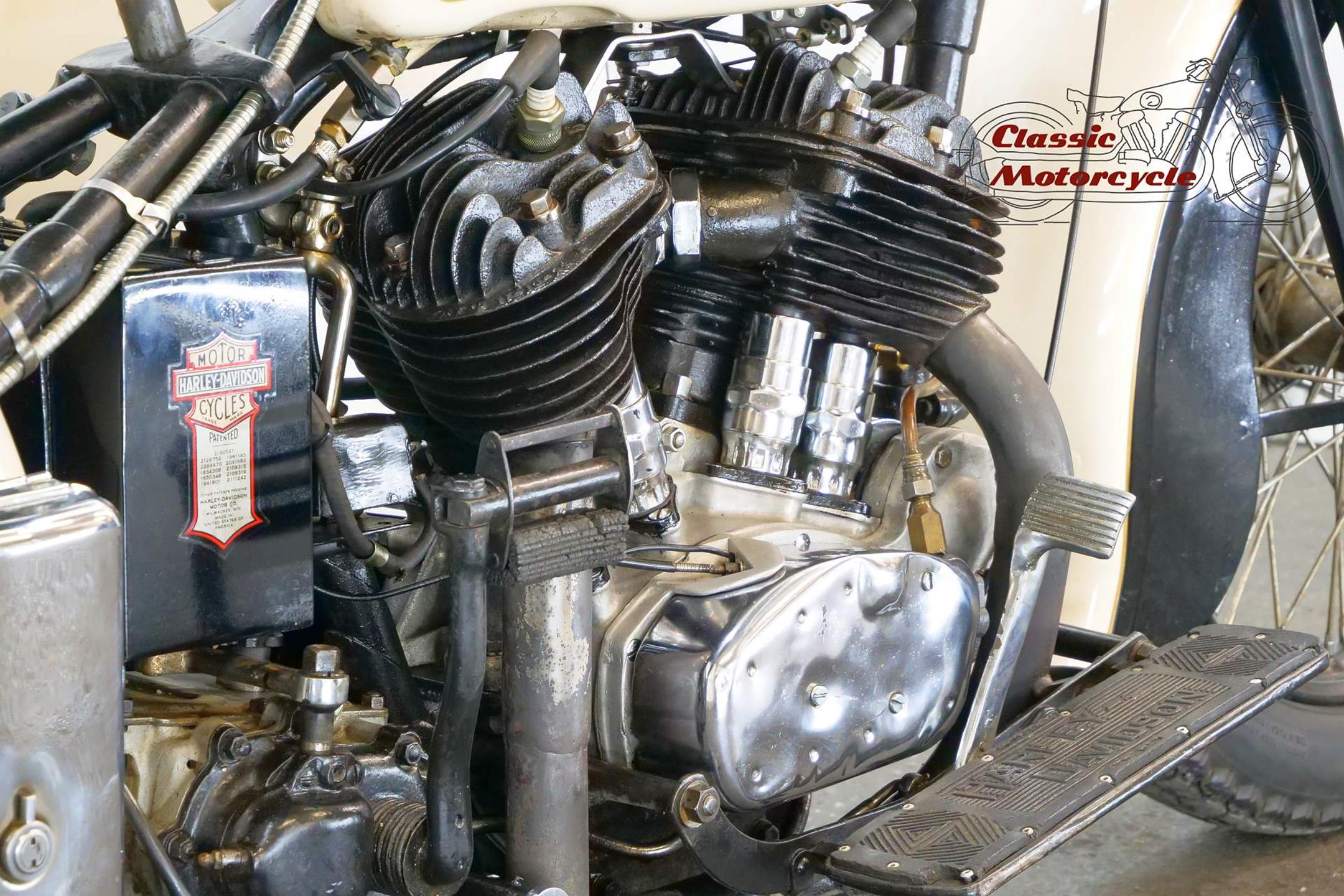

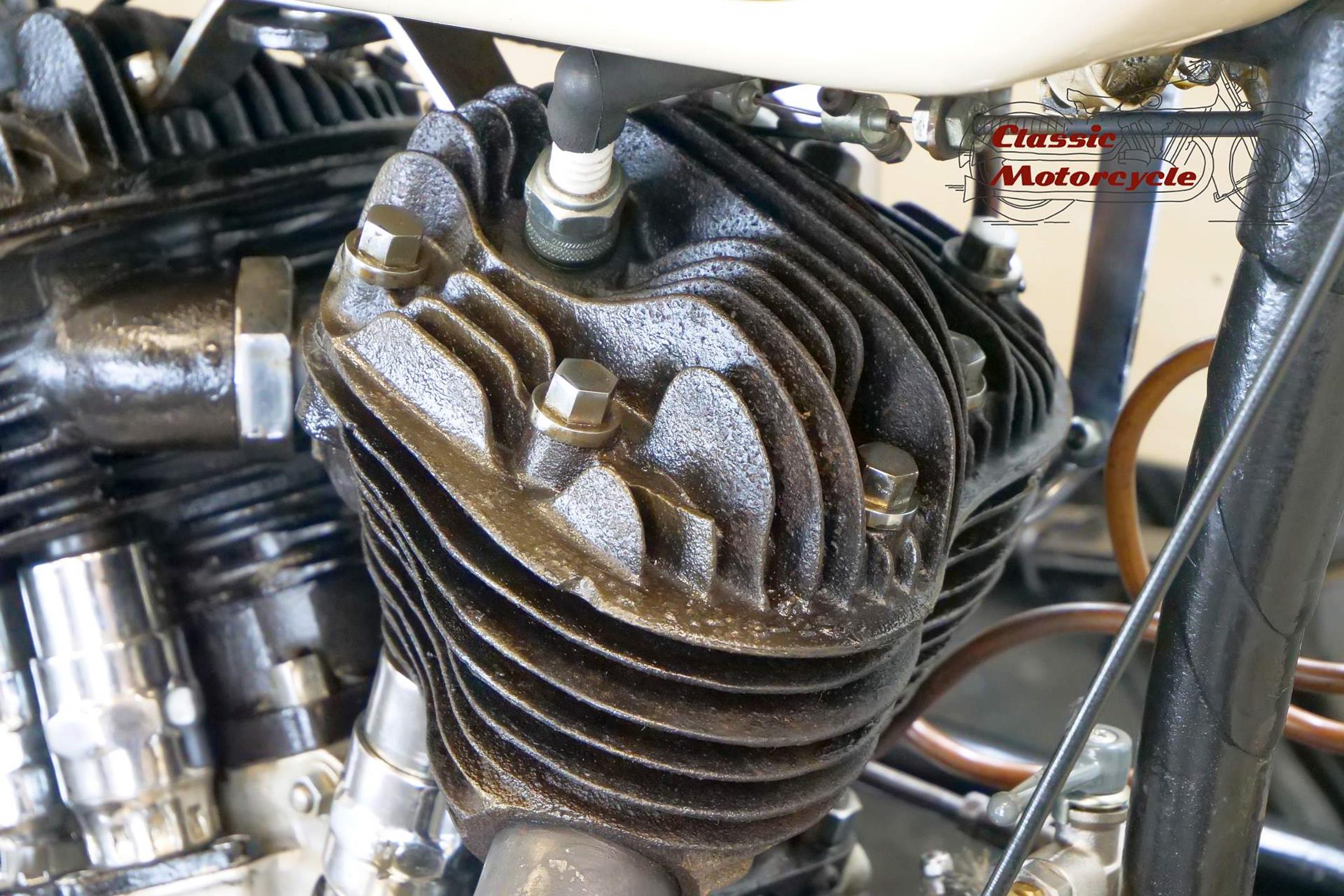

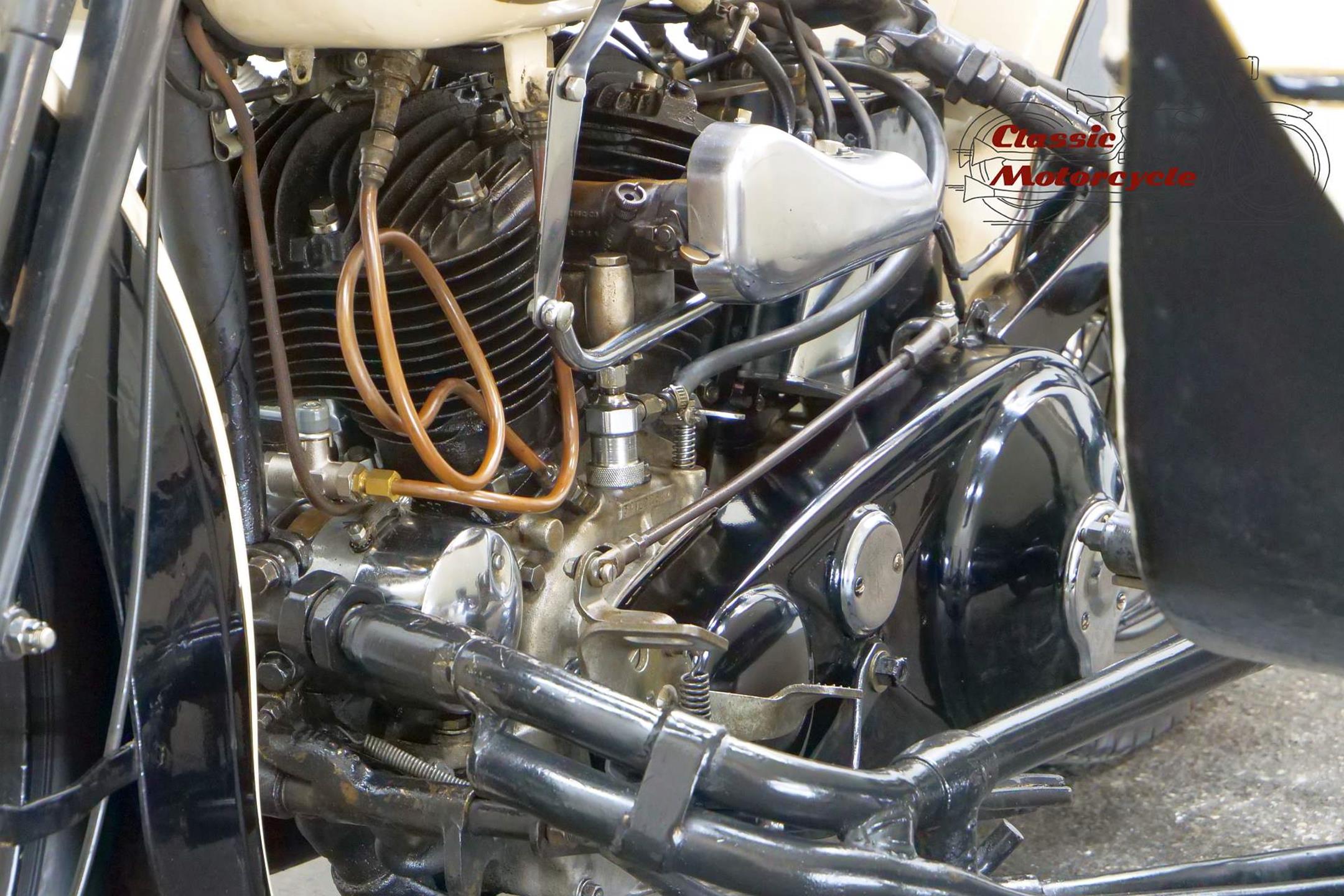

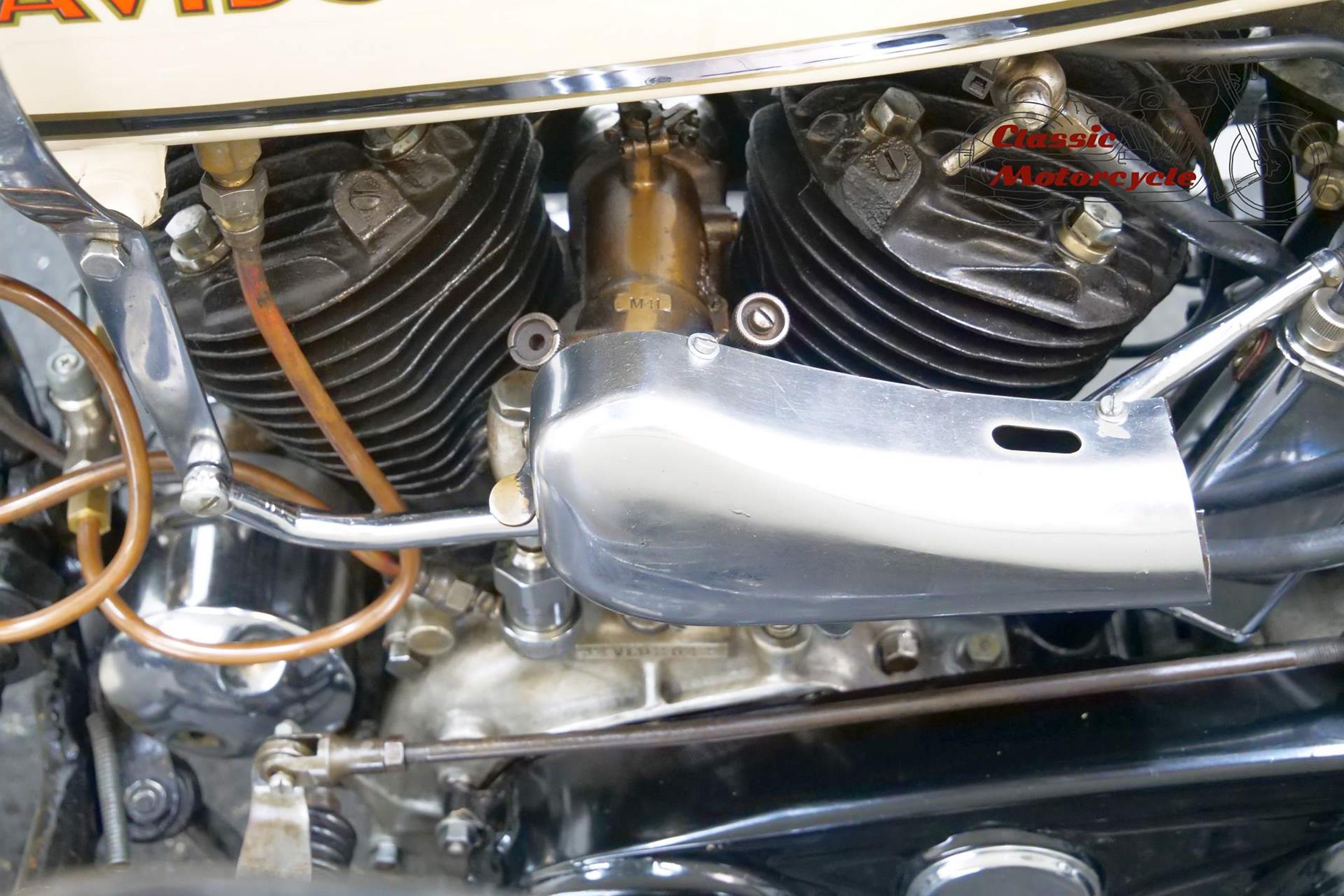

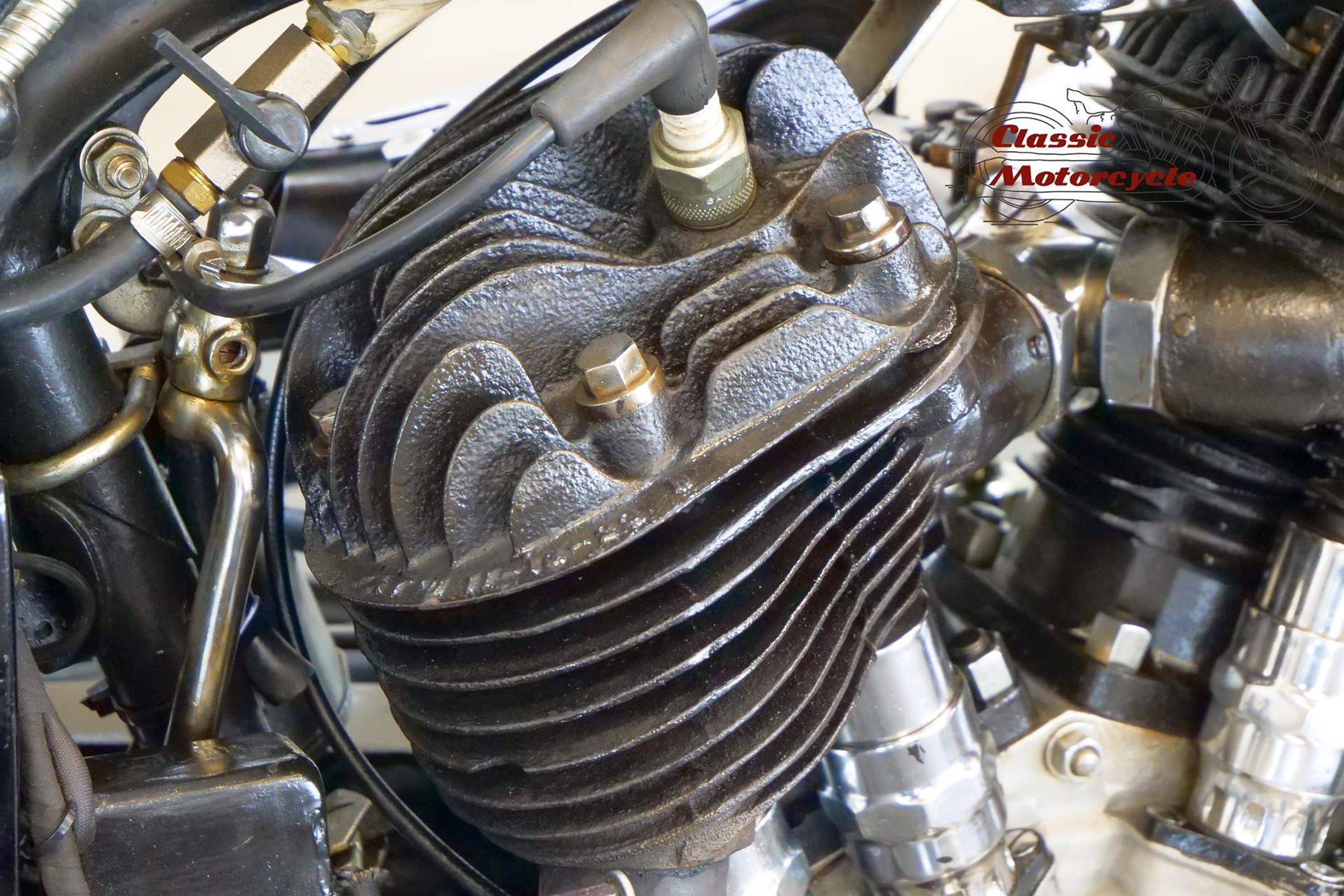

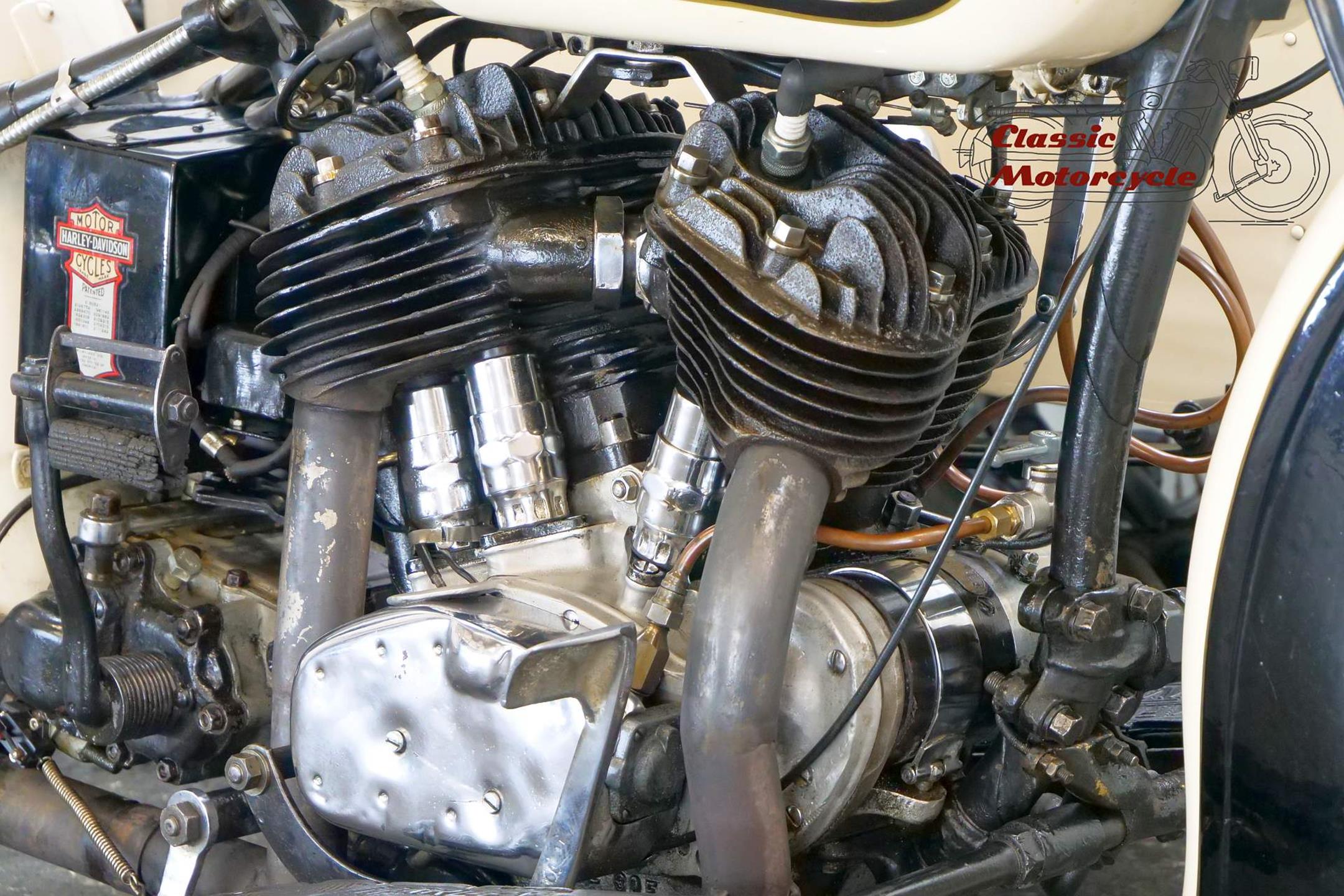

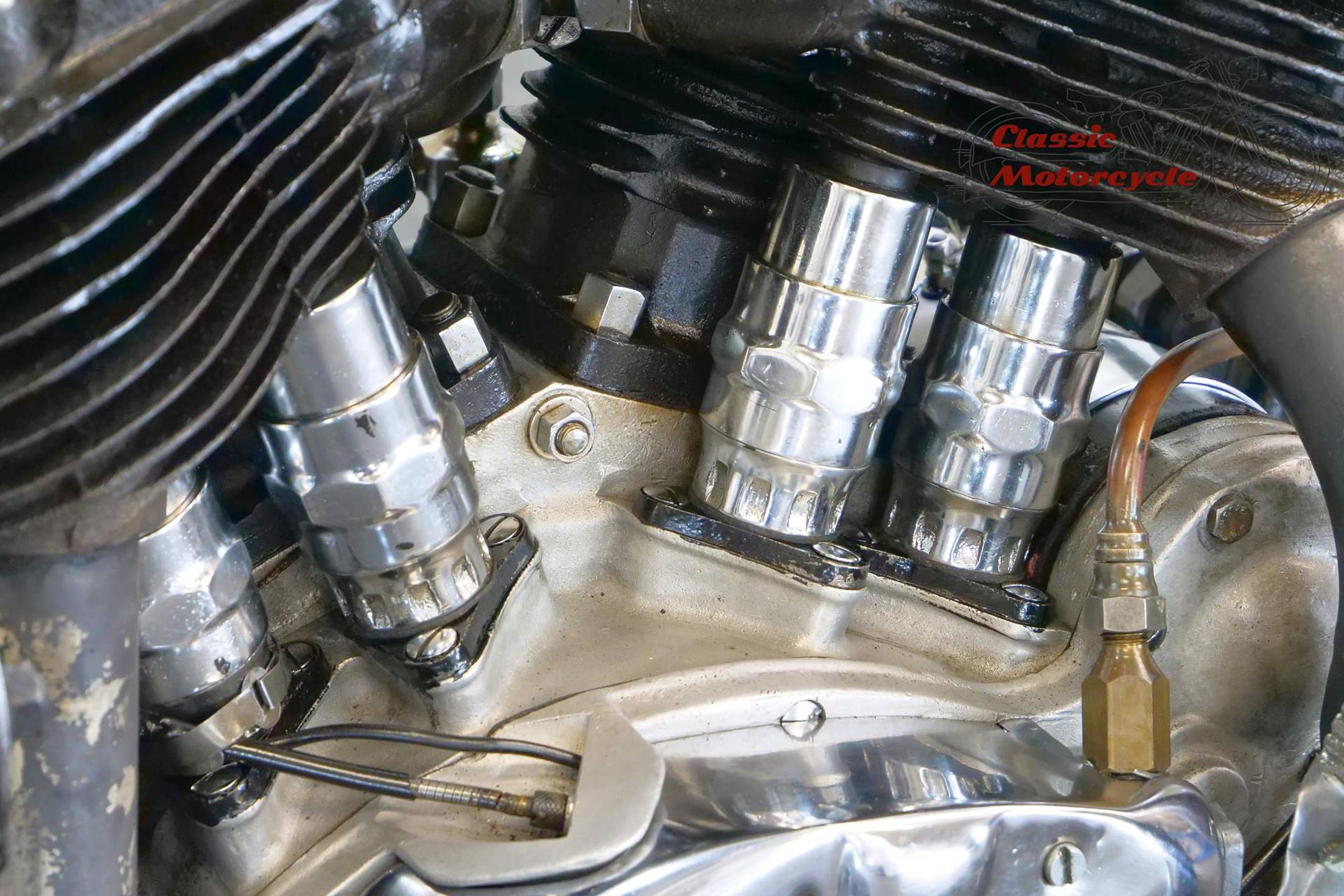

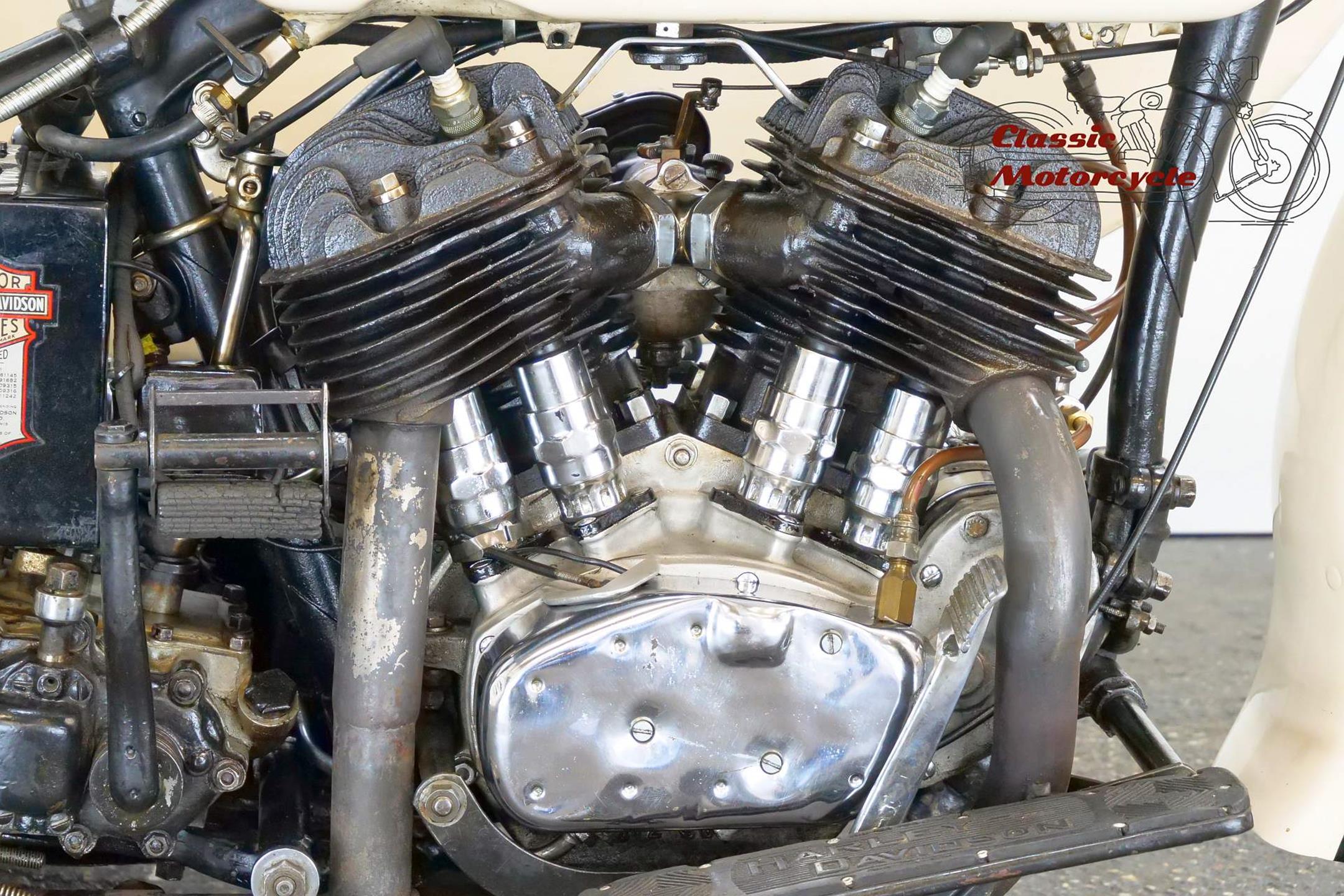

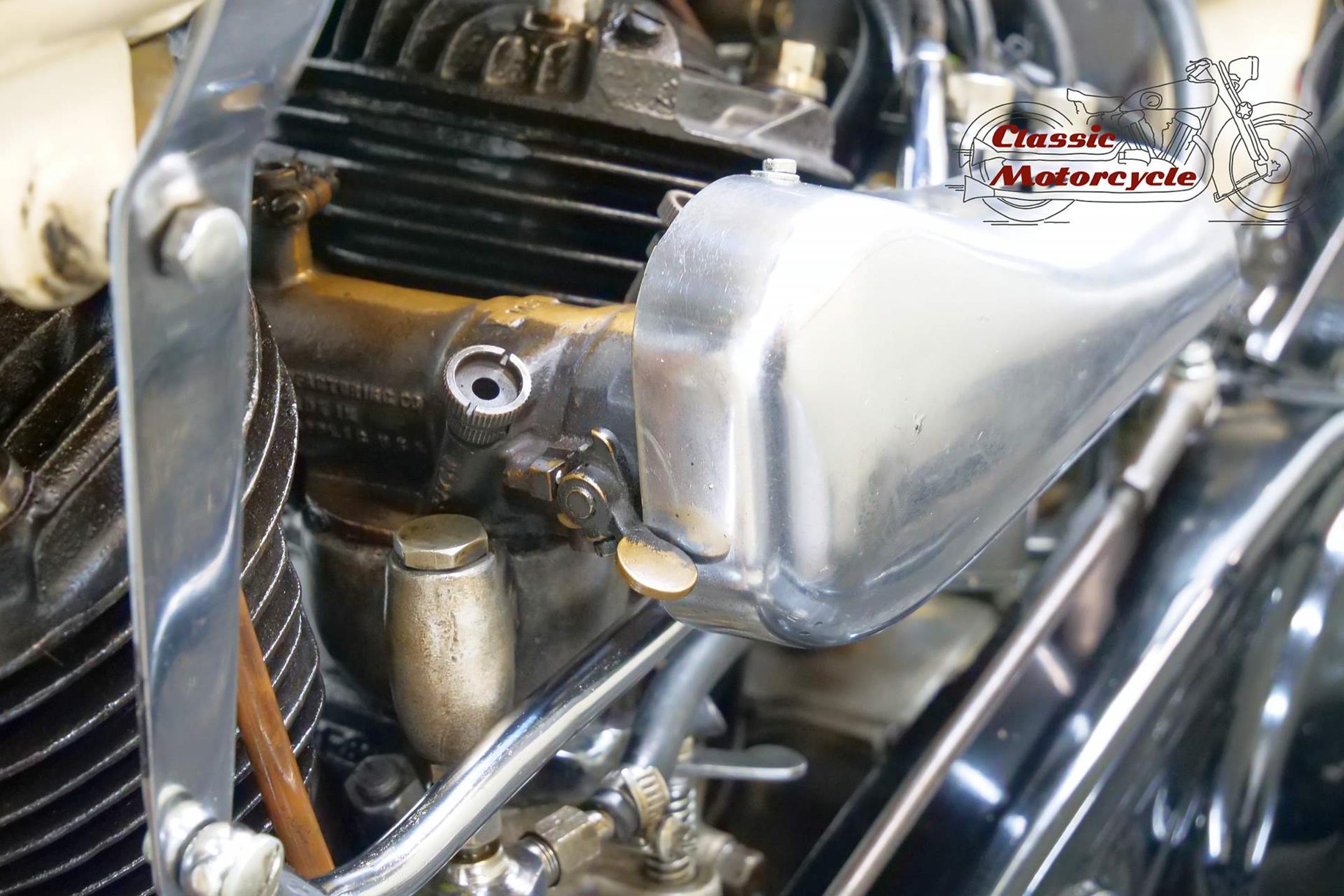

In August 1929, Harley-Davidson took a deep breath, closed the door on the inlet-over-exhaust twins that had built the company’s reputation and brought out a new 1200cc side-valve engine. The disaster — the Great Depression. From 18,036 machines sold in 1930, sales dropped to 10.407 in 1931, 7.218 in 1932 and bottomed out at 3.703 in 1933. By 1934, things were a little better, and Harley proudly unveiled its lineup for the year. Art Deco styling was at its peak, and the 1934 Flathead is a beautiful example of this artistic movement. The VLD was HD’s top of the line twin, with low-expansion aluminum alloy pistons, a Y-shaped intake manifold and 5:1 compression. The engine made 36hp at 4.500rpm, and top speed was probably about 144kmh. Like most bikes in 1934, the VLD had no rear springing and a 6-volt electrical system. Bumps on the road were softened by Harley’s patented “Ful-Floteing” seat spring. Shifting was via a 3-speed hand shift through a rocker foot-clutch that could be locked in place. A rider could bring a properly set up Harley Flathead to a stop, engage the clutch, put down both feet and fold his arms.

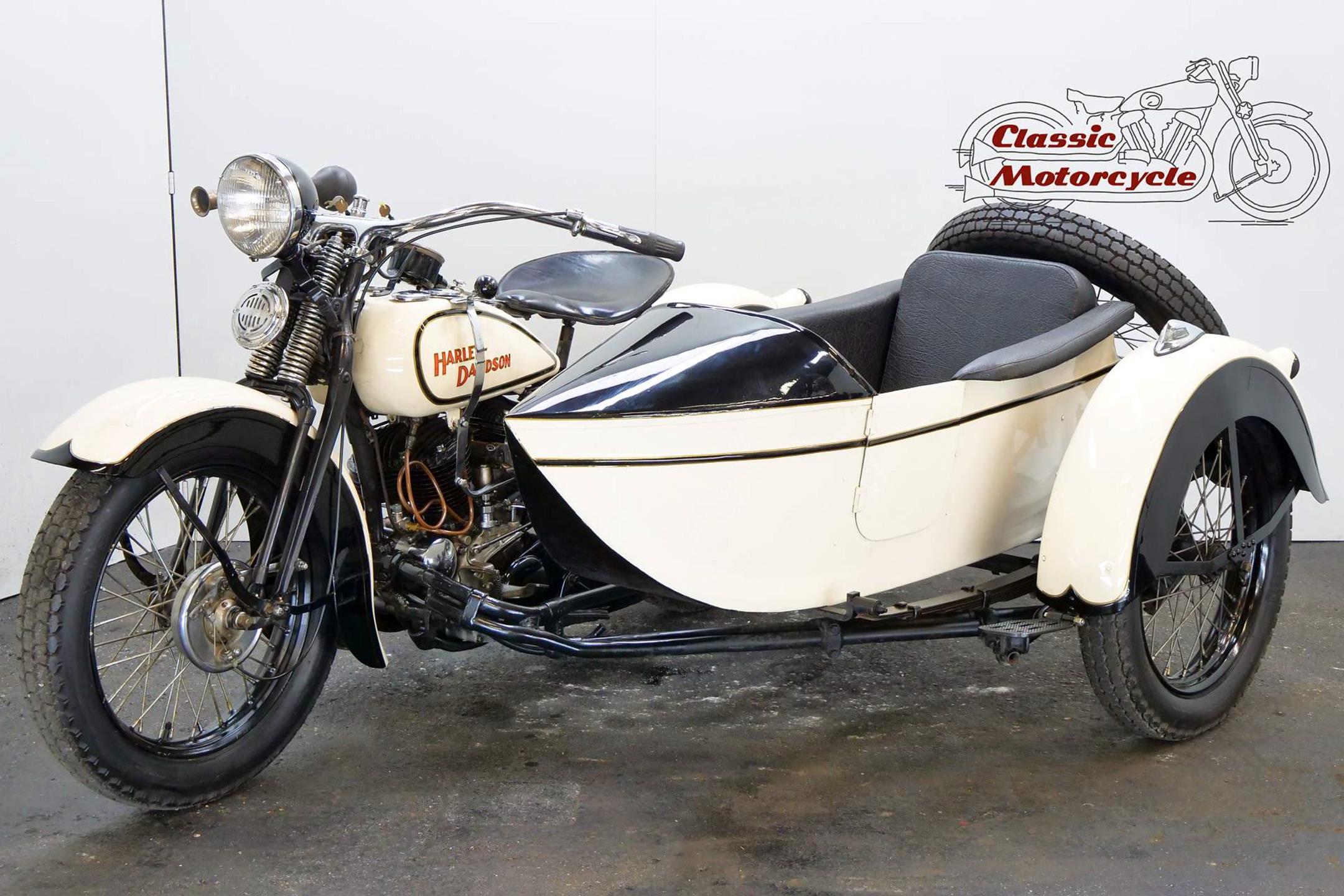

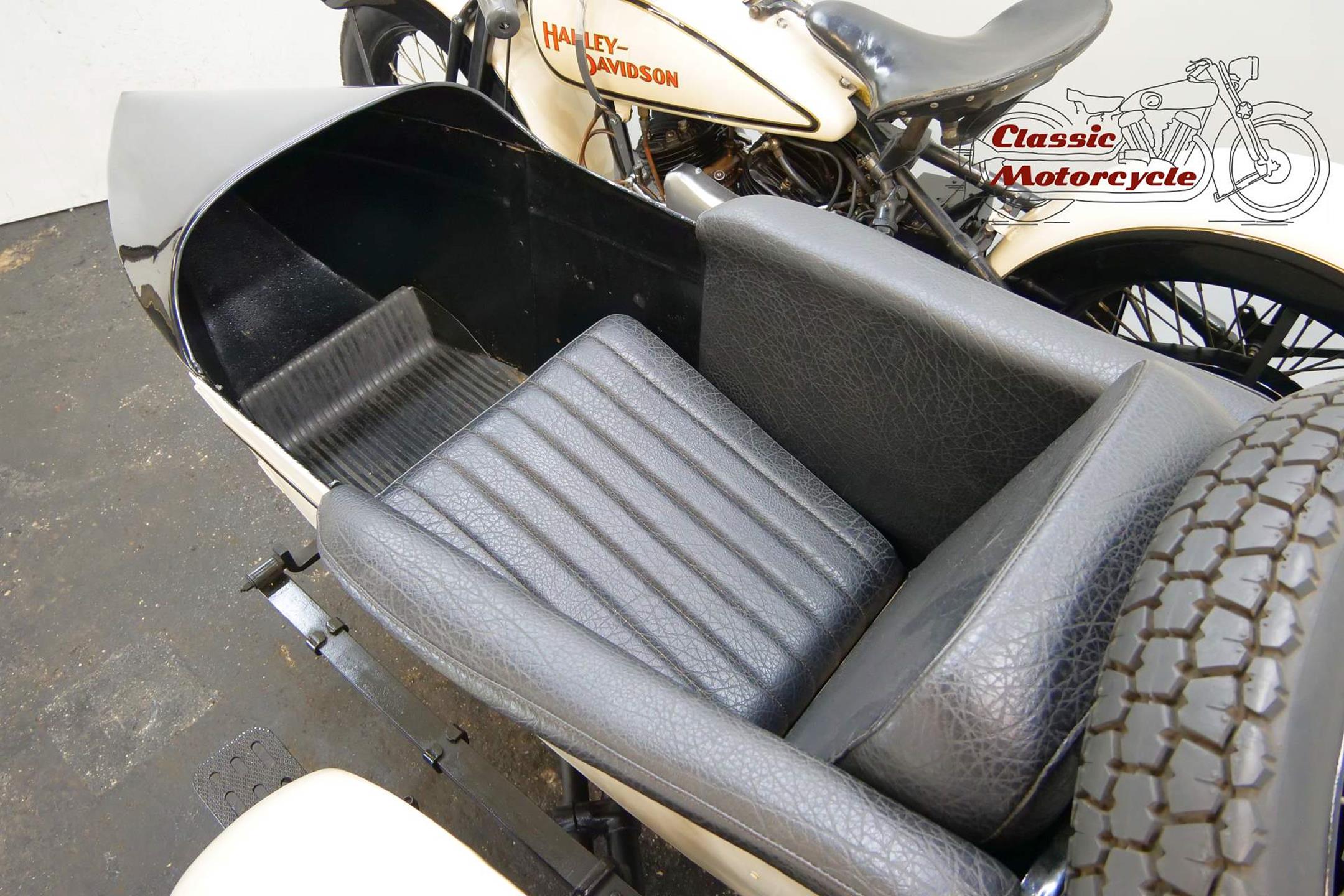

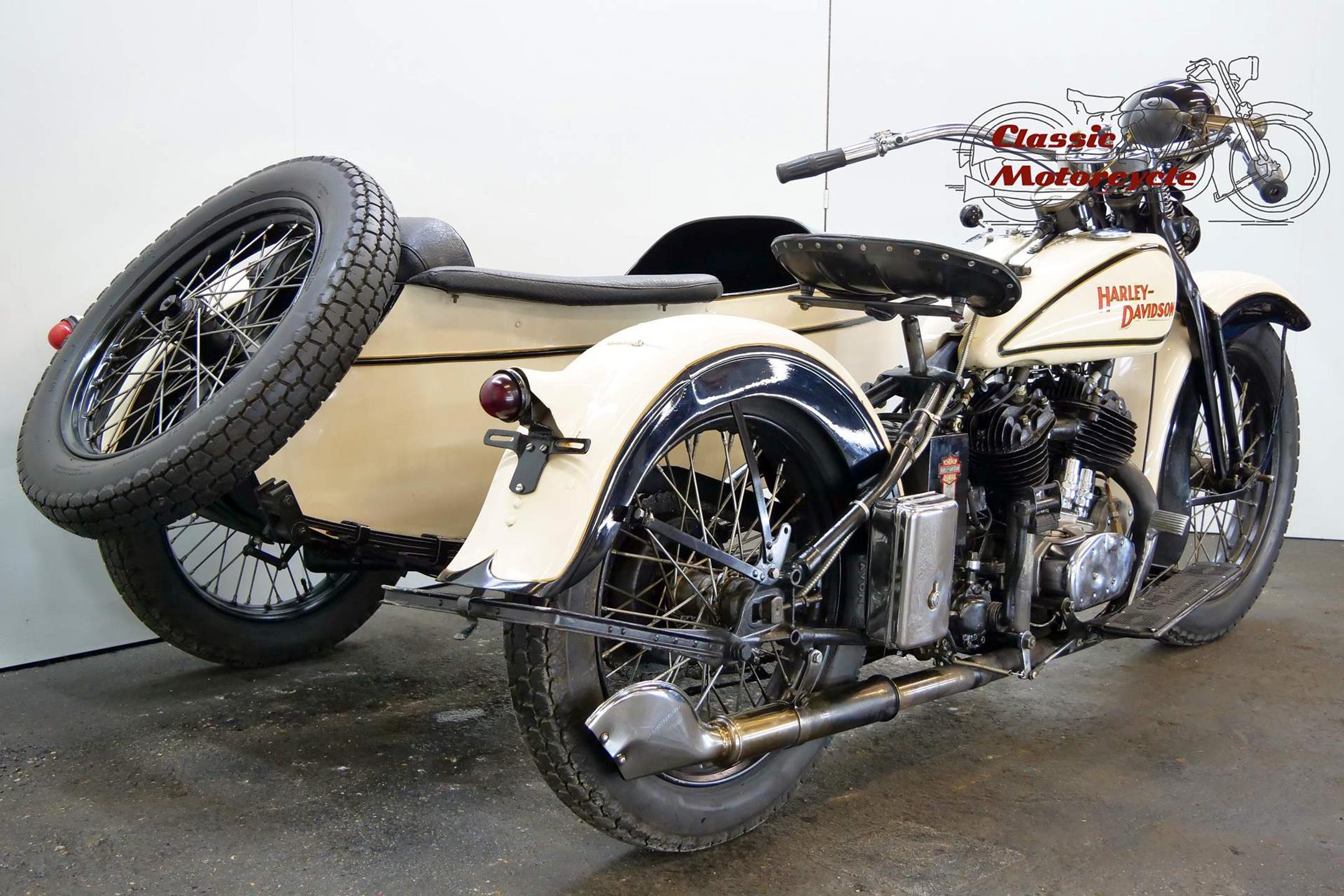

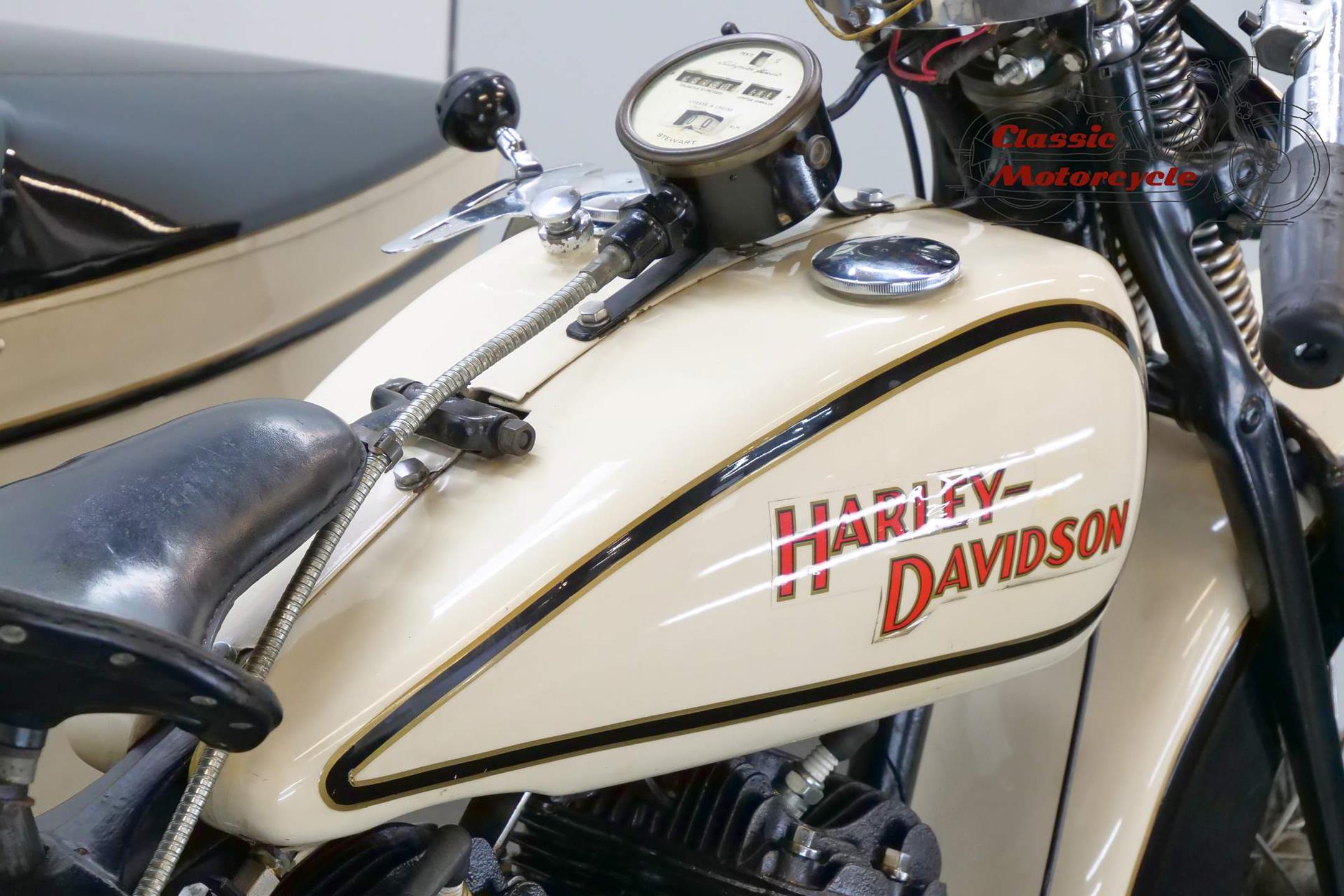

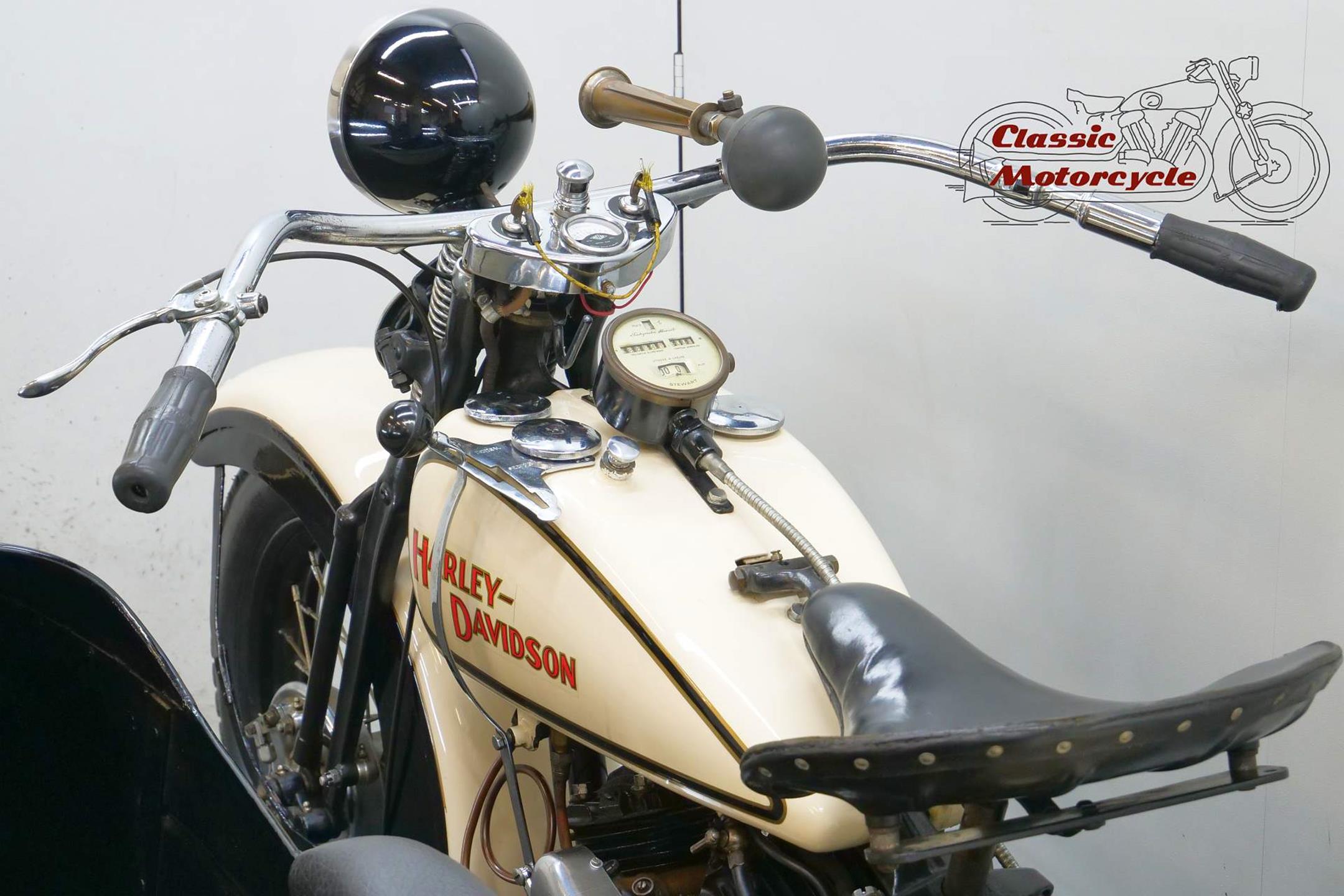

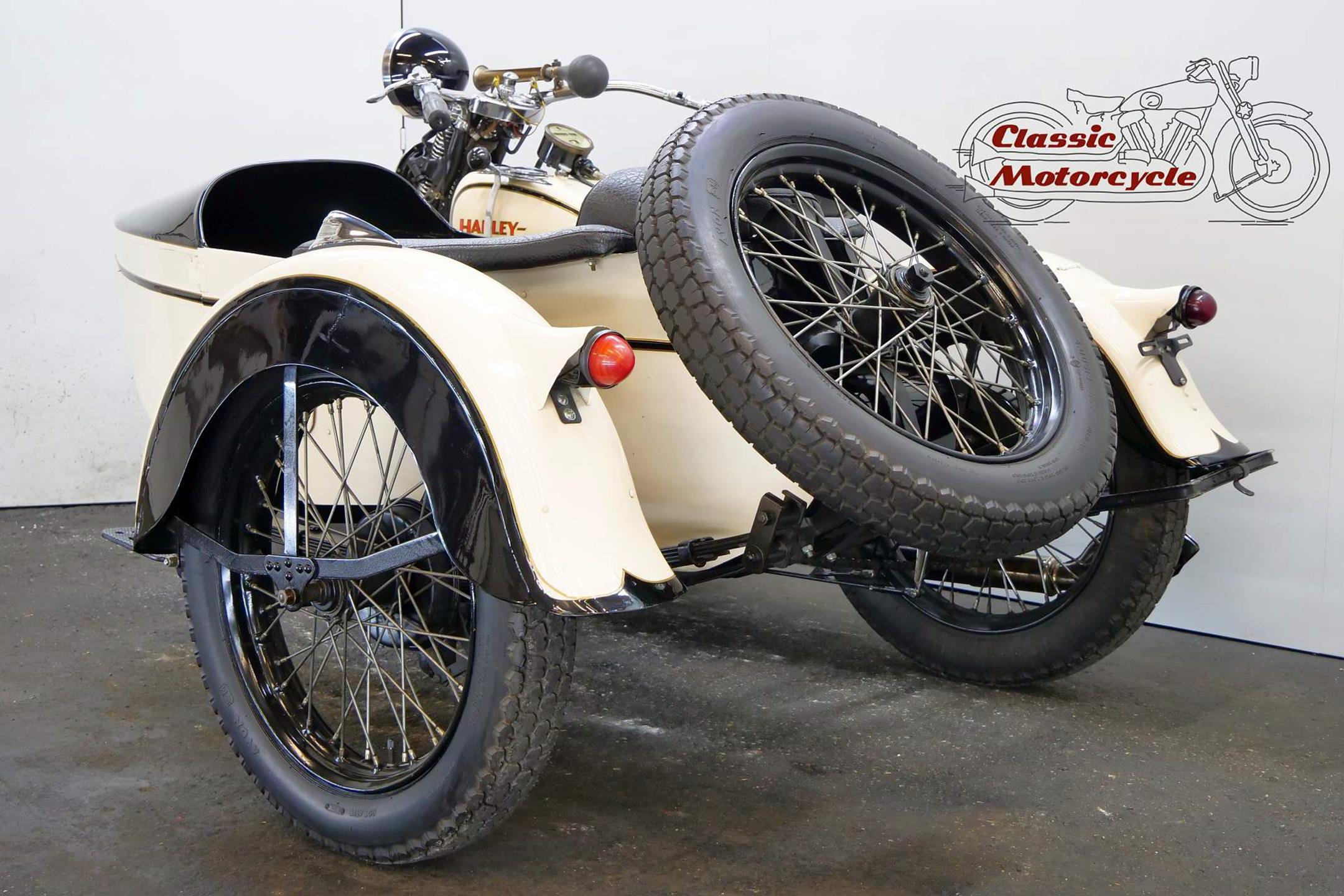

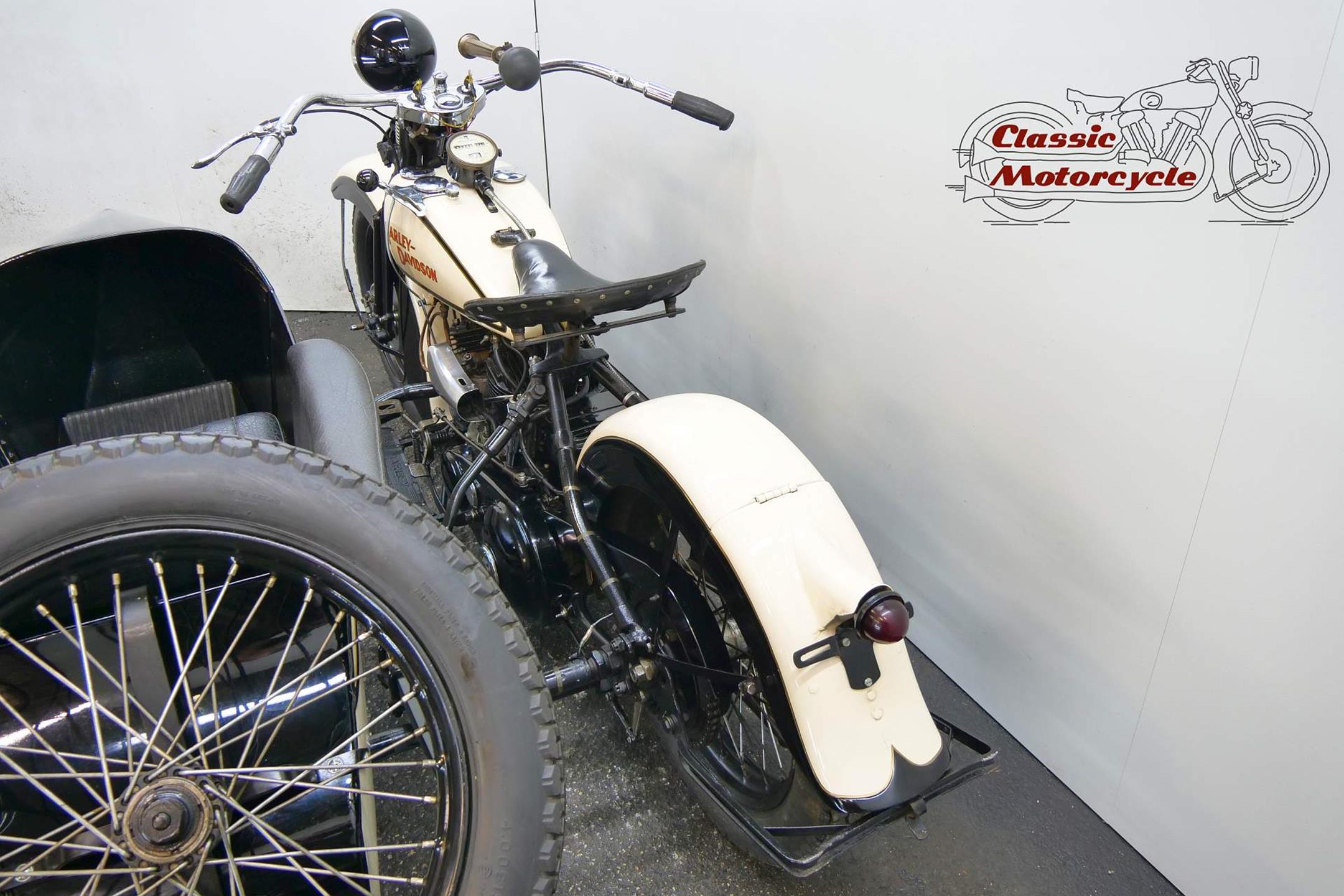

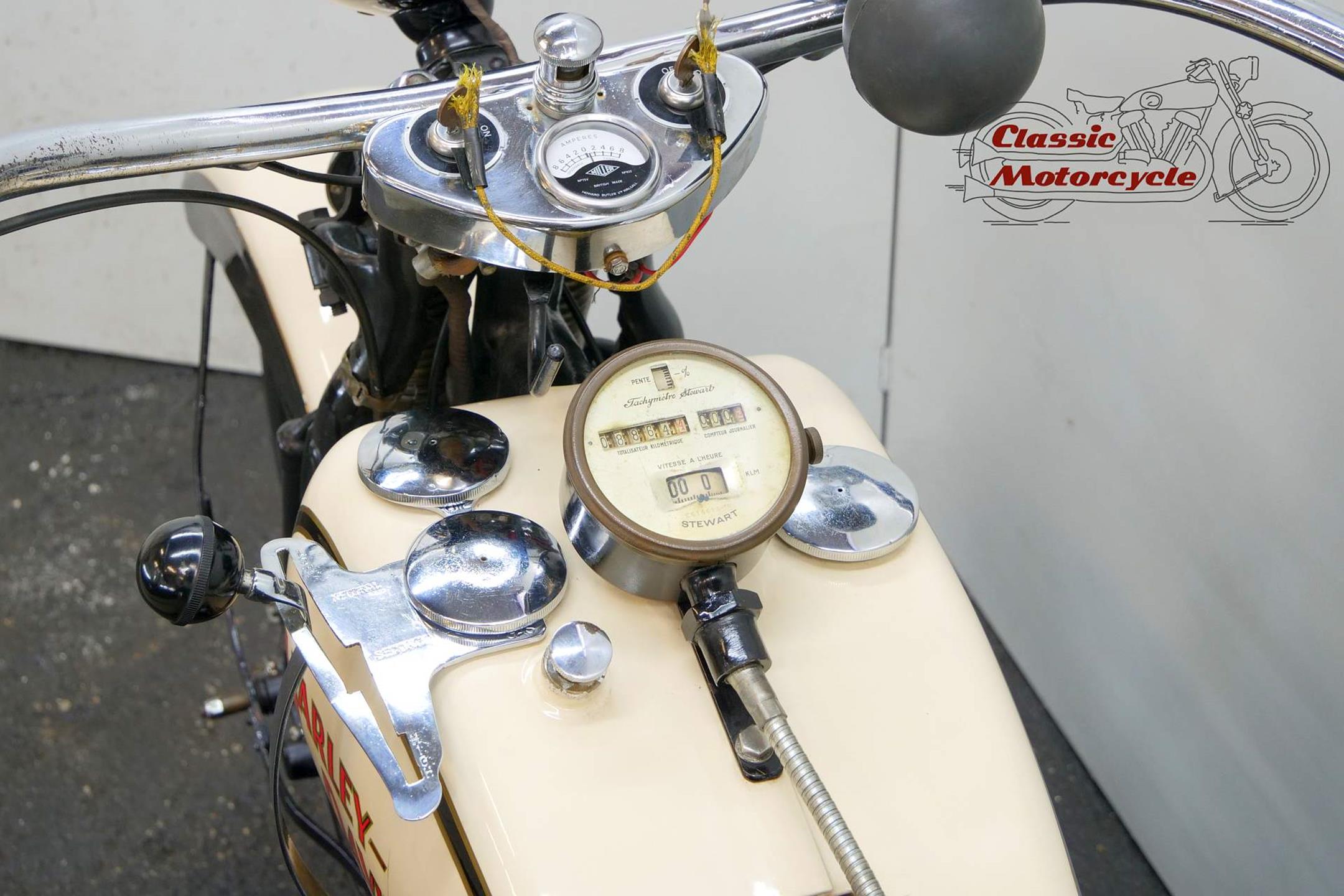

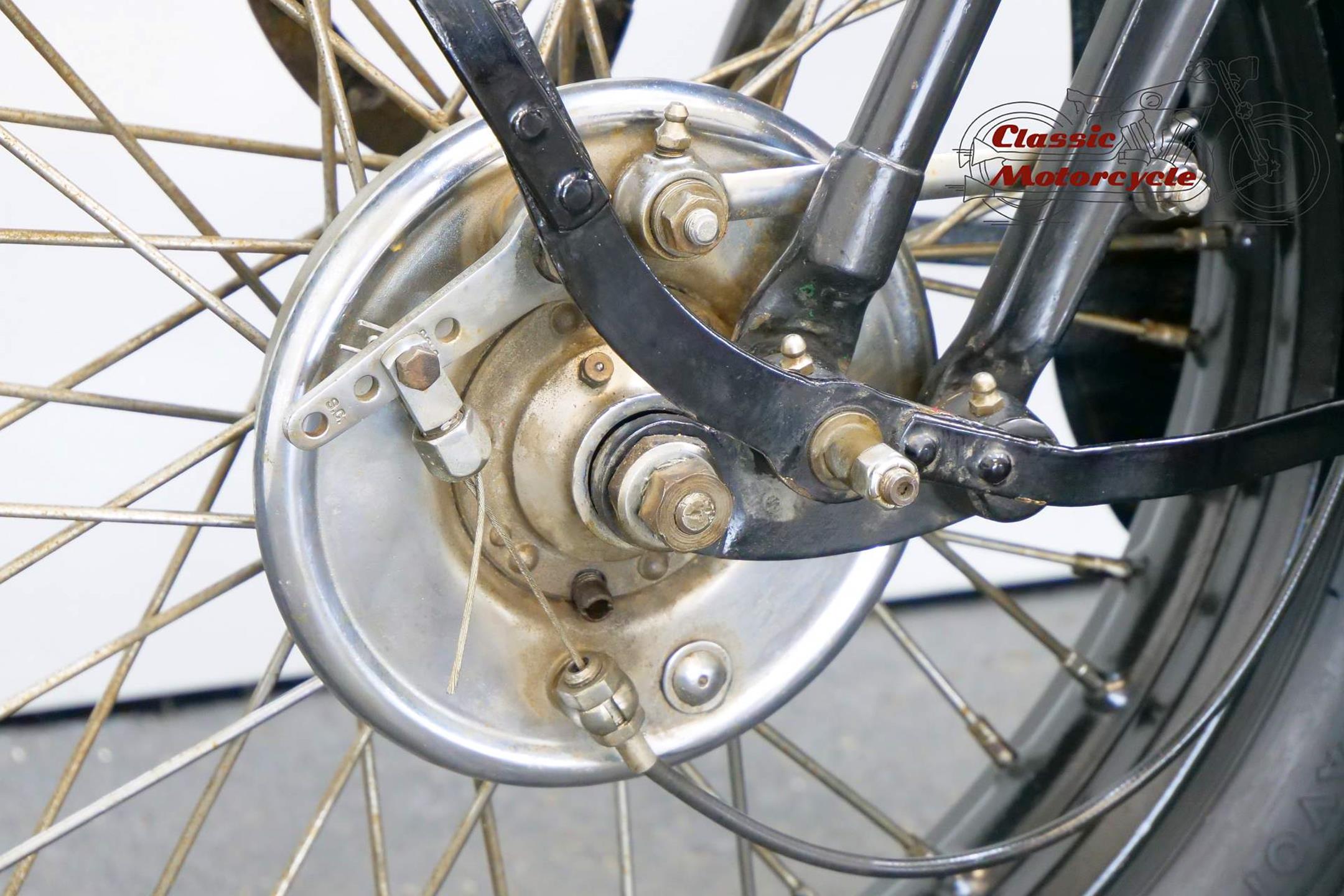

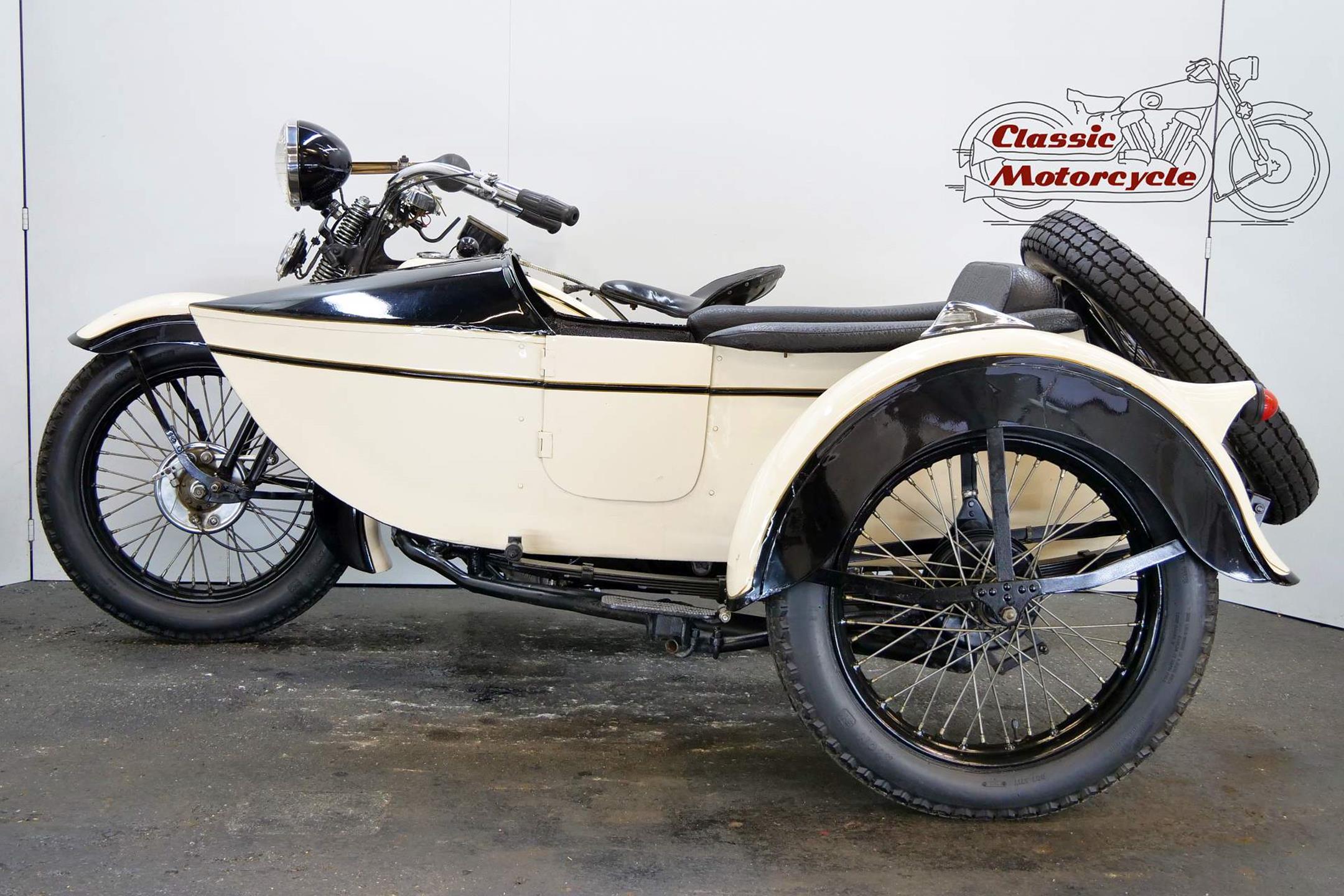

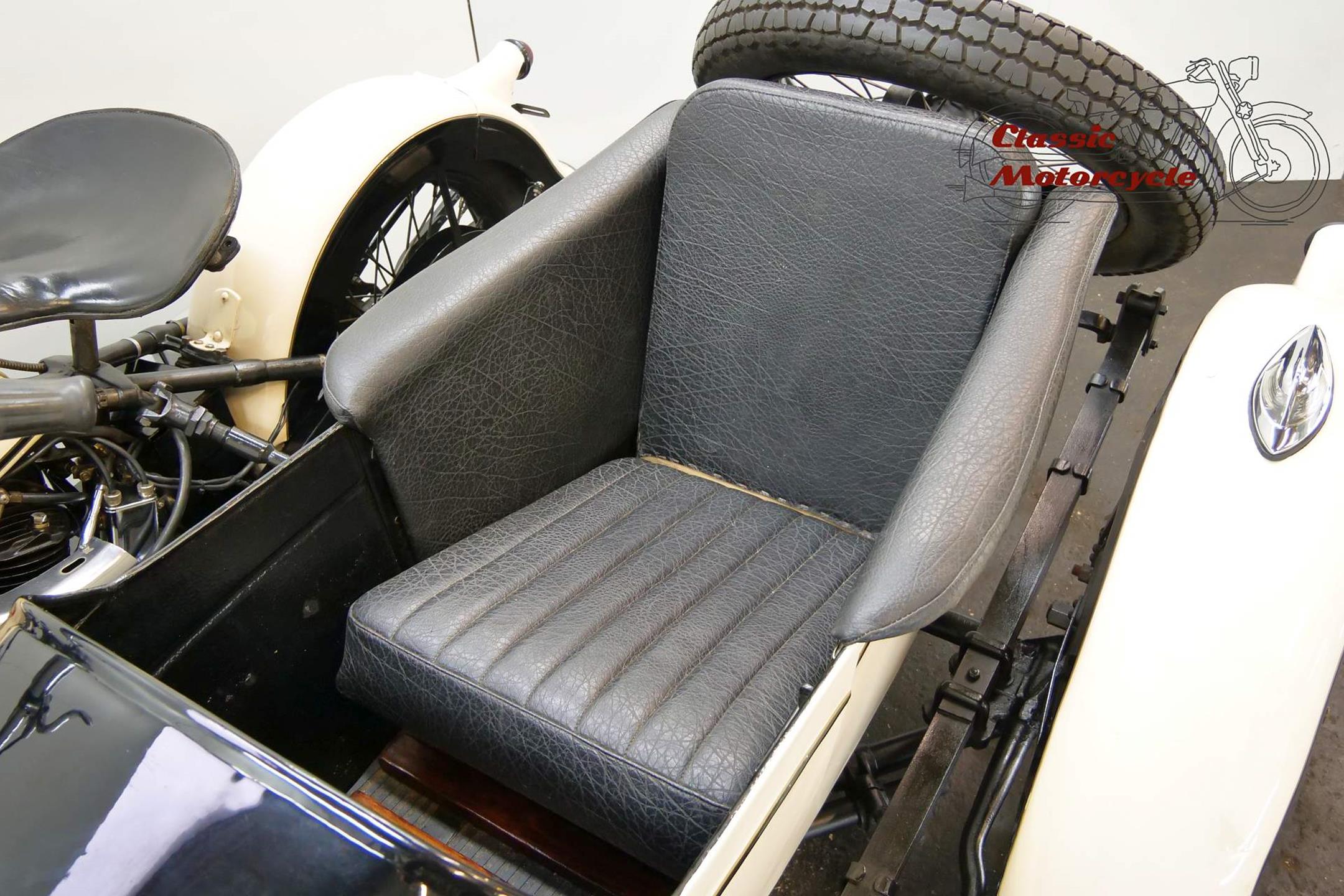

This VLD is equipped with a Harley Davison sidecar and a Stewart speedo. The sidecar has a break which is connected to the break of the motorcycle. Motorcycle and sidecar form a perfect and elegant unit.
